D01-9933246

Active

Harwin Inc.

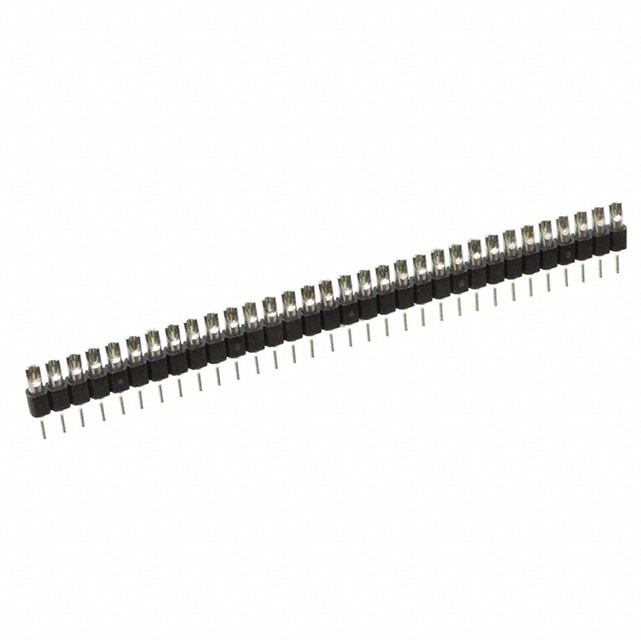

SIP SOCKET, 32POS, 2.54MM, TIN, TH ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

SIP SOCKET, 32POS, 2.54MM, TIN, TH ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	D01-9933246

Contact Finish - Post	Tin
Contact Material - Mating	Brass
Contact Material - Post [custom]	Brass
Contact Resistance	23 mOhm
Current Rating (Amps)	1.5 A
Housing Material	Glass Filled, Polyamide (PA46), Nylon 4/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid) [custom]	1 x 32
Number of Positions or Pins (Grid) [custom]	32
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination Post Length	0.121 in
Termination Post Length	3.08 mm
Type	SIP

Part	Pitch - Mating	Pitch - Mating	Mounting Type	Contact Material - Post [custom]	Contact Resistance	Type	Contact Material - Mating	Contact Finish - Post	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Pitch - Post	Pitch - Post	Housing Material	Material Flammability Rating	Termination Post Length	Termination Post Length
Harwin Inc. D01-9933246	0.1 in	2.54 mm	Through Hole	Brass	23 mOhm	SIP	Brass	Tin	1 x 32	32	-55 °C	125 °C	1.5 A	2.54 mm	0.1 in	Glass Filled Nylon 4/6 Polyamide (PA46)	UL94 V-0	0.121 in	3.08 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 7.50
Newark	Each	1	$ 7.44

General part information

32 (1 x 32) Pos SIP Socket Tin Through Hole
