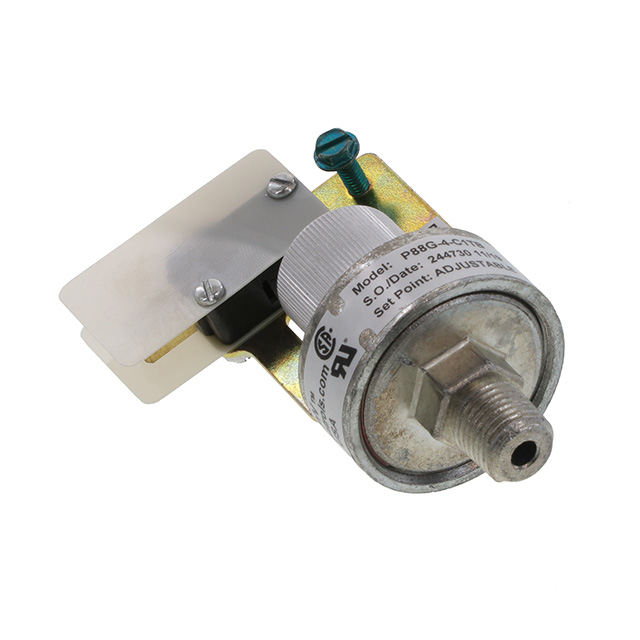

P88G-4-C1TB
ObsoleteWhitman Controls, LLC
PRESSURE SWITCH 3-40 PSIG
Deep-Dive with AI
Search across all available documentation for this part.
P88G-4-C1TB
ObsoleteWhitman Controls, LLC
PRESSURE SWITCH 3-40 PSIG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | P88G-4-C1TB |
|---|---|
| Accuracy | 6.89 kPa |
| Accuracy | 1 PSI |
| Maximum Pressure | 600 PSI |
| Maximum Pressure | 4136.85 kPa |
| Operating Pressure [Max] | 275.79 kPa |
| Operating Pressure [Max] | 40 PSI |
| Operating Pressure [Min] | 20.68 kPa |
| Operating Pressure [Min] | 3 PSI |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -35 °C |
| Output Type | SPDT |
| Package / Case | Cylinder, Threaded |
| Port Size [custom] | NPT |
| Port Size [custom] | Male |
| Port Size [x] | 0.25 " |
| Port Size [x] | 6.35 mm |
| Port Style | Threaded |
| Pressure Type | Switch |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 65.30 | |
Description
General part information
P88G-4 Series
PRESSURE SWITCH 3-40 PSIG
Documents
Technical documentation and resources
No documents available
