PLN-20-24
ActiveMEAN WELL USA Inc.

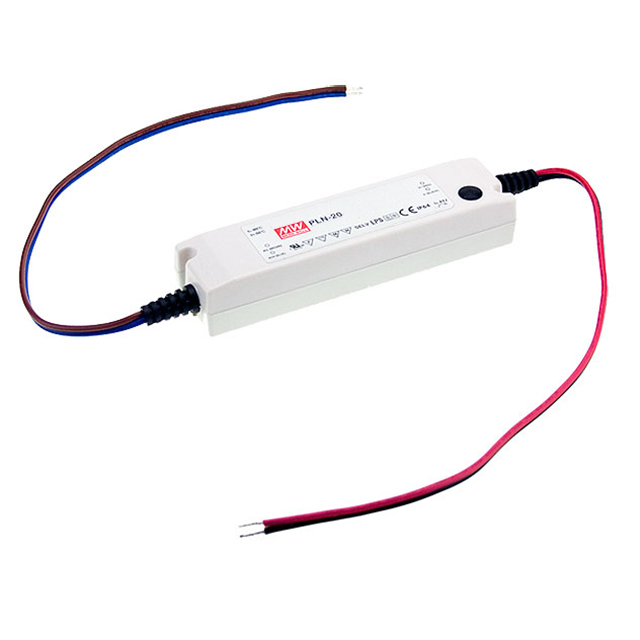

LED DRVR CC AC/DC 18-24V 800MA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PLN-20-24
ActiveMEAN WELL USA Inc.
LED DRVR CC AC/DC 18-24V 800MA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PLN-20-24 |
|---|---|
| Approval Agency | cURus, CE, PSE, CB, TUV |
| Current - Output (Max) [Max] | 800 mA |
| Features | OTP, SCP, OVP, OCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -30 ░C |
| Power (Watts) | 19 W |
| Ratings | IP64 |
| Size / Dimension [x] | 148.5 mm |
| Size / Dimension [x] | 5.85 in |
| Size / Dimension [y] | 38.5 mm |
| Size / Dimension [y] | 1.52 in |
| Size / Dimension [z] | 28 mm |
| Size / Dimension [z] | 1.1 in |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 277 VAC |
| Voltage - Input (Min) [Min] | 90 VAC |
| Voltage - Isolation | 3750 V |
| Voltage - Output [Max] | 24 V |
| Voltage - Output [Min] | 18 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 22.02 | |
| 5 | $ 20.42 | |||
| 10 | $ 19.76 | |||
| 25 | $ 18.93 | |||
Description
General part information
PLN-20 Series
800mA 18 ~ 24V Constant Current LED Driver AC DC Converter Topology 1 Output
