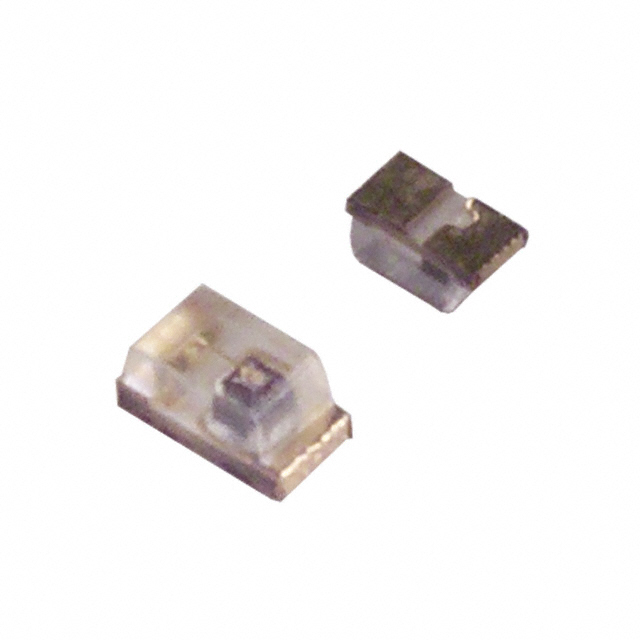

SML-LX0402SIC-TR

Active

Lumex Opto/Components Inc.

LED RED CLEAR SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SML-LX0402SIC-TR

Active

Lumex Opto/Components Inc.

LED RED CLEAR SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SML-LX0402SIC-TR

Color	Red
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max] [z]	0.5 mm
Lens Color	Colorless
Lens Size [x]	0.8 mm
Lens Size [y]	0.5 mm
Lens Style	Rectangle with Flat Top
Lens Transparency	Clear
Millicandela Rating	140 mcd
Mounting Type	Surface Mount
Package / Case	0402 (1005 Metric)
Size / Dimension [x]	1 mm
Size / Dimension [y]	0.5 mm
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	2 V
Wavelength - Peak	636 nm

SML-LX0402 Series

Part	Lens Size [y]	Lens Size [x]	Lens Style	Height (Max) [Max] [z]	Color	Lens Color	Current - Test	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Package / Case	Configuration	Lens Transparency	Size / Dimension [x]	Size / Dimension [y]	Millicandela Rating	Mounting Type	Viewing Angle	Wavelength - Peak
Lumex Opto/Components Inc. SML-LX0402UPGC-TR	0.5 mm	0.8 mm	Rectangle with Flat Top	0.7 mm	Green	Colorless	20 mA	0402 (1005 Metric)	3.5 V	0402 (1005 Metric)	Standard	Clear	1 mm	0.55 mm	110 mcd	Surface Mount	120 °	525 nm
Lumex Opto/Components Inc. SML-LX0402SYC-TR	0.5 mm	0.8 mm	Rectangle with Flat Top	0.5 mm	Yellow	Colorless	20 mA		2 V	0402 (1005 Metric)	Standard	Clear	1 mm	0.5 mm	60 mcd	Surface Mount	120 °	590 nm
Lumex Opto/Components Inc. SML-LX0402GC-TR	0.5 mm	0.8 mm	Rectangle with Flat Top	0.52 mm	Green	Colorless	20 mA		2.2 V	0402 (1005 Metric)	Standard	Clear	1 mm	0.5 mm	10 mcd	Surface Mount	120 °	565 nm
Lumex Opto/Components Inc. SML-LX0402SUGC-TR	0.5 mm	0.8 mm	Rectangle with Flat Top	0.5 mm	Green	Colorless	20 mA		2.2 V	0402 (1005 Metric)	Standard	Clear	1 mm	0.5 mm	45 mcd	Surface Mount	120 °
Lumex Opto/Components Inc. SML-LX0402DRC-TR	0.5 mm	1 mm	Rectangle with Flat Top	0.5 mm	Red	Colorless	20 mA		2 V	0402 (1005 Metric)	Independent	Clear	1 mm	0.5 mm	25 mcd	Surface Mount	120 °	650 nm
Lumex Opto/Components Inc. SML-LX0402SIC-TR	0.5 mm	0.8 mm	Rectangle with Flat Top	0.5 mm	Red	Colorless	20 mA		2 V	0402 (1005 Metric)	Standard	Clear	1 mm	0.5 mm	140 mcd	Surface Mount	120 °	636 nm
Lumex Opto/Components Inc. SML-LX0402USBC-TR	0.5 mm	0.8 mm	Rectangle with Flat Top	0.5 mm	Blue	Colorless	20 mA		3.3 V	0402 (1005 Metric)	Standard	Clear	1 mm	0.5 mm	60 mcd	Surface Mount	120 °	463 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.50
		10	$ 0.31
		100	$ 0.18
		1000	$ 0.14
	Digi-Reel®	1	$ 0.50
		10	$ 0.31
		100	$ 0.18
		1000	$ 0.14
	Tape & Reel (TR)	2000	$ 0.13
		6000	$ 0.12
		10000	$ 0.11
		50000	$ 0.10
		100000	$ 0.10

Description

General part information

SML-LX0402 Series

Red LED Indication - Discrete 2V 0402 (1005 Metric)
