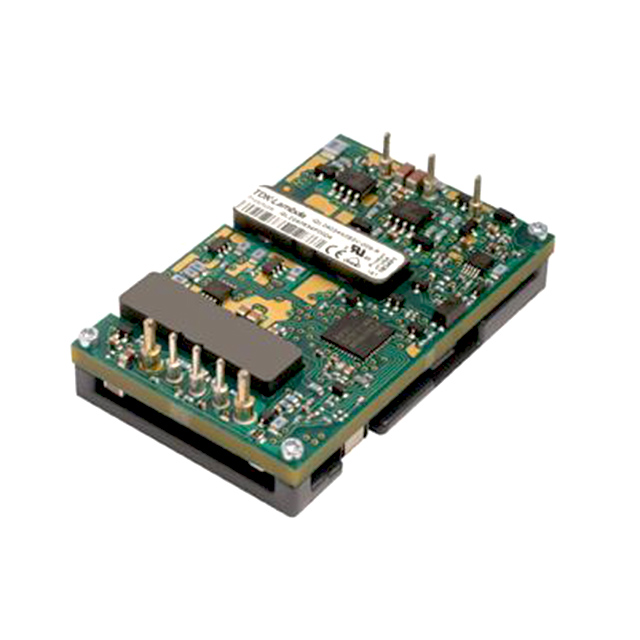

IQL48011A280V-008-R

Active

TDK-LAMBDA

ISOLATED THROUGH HOLE DC/DC CONVERTER, QUARTER BRICK, 308 W, 1 OUTPUT, 28 V

Search across all available documentation for this part.

Active

TDK-LAMBDA

ISOLATED THROUGH HOLE DC/DC CONVERTER, QUARTER BRICK, 308 W, 1 OUTPUT, 28 V

Technical Specifications

Parameters and characteristics for this part

Part	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Supplier Device Package	Voltage - Input (Max) [Max]	Number of Outputs	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Isolation	Power (Watts)	Voltage - Output 1	Mounting Type	Type	Voltage - Input (Min) [Min]	Efficiency	Features	Current - Output (Max) [Max]	Control Features
TDK-LAMBDA IQL48011A280V-008-R	ITE (Commercial)	-40 °C	115 °C	Quarter Brick	Quarter Brick	75 V	1	13.2 mm	57.9 mm	0.52 "	1.45 in	36.8 mm	2.28 in	1.5 kV	308 W	28 V	Through Hole	Isolated Module	36 V	92.5 %	OCP OTP OVP Remote On/Off	11 A
TDK-LAMBDA IQL48011A280V-009-R	ITE (Commercial)	-40 °C	115 °C	1/4 Brick 8-DIP Module		75 V	1	13.2 mm	57.9 mm	0.52 "	1.45 in	36.8 mm	2.28 in	1.5 kV	308 W	28 V	Through Hole	Intermediate Bus Converter	36 V	92.5 %	OCP OVP Remote On/Off	11 A	Active Low Enable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	72	$ 83.19
Newark	Each	1	$ 70.67

General part information

Isolated Module DC DC Converter 1 Output 28V 11A 36V - 75V Input
