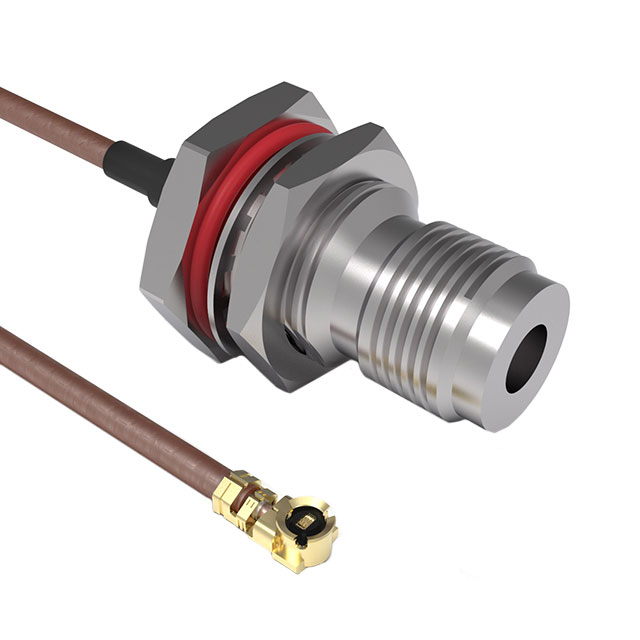

CABLE 235 RF-100-A-2
ActiveGCT
CBL ASY IPEX MHF1-TNC J-P 3.937"
Deep-Dive with AI
Search across all available documentation for this part.
CABLE 235 RF-100-A-2
ActiveGCT
CBL ASY IPEX MHF1-TNC J-P 3.937"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CABLE 235 RF-100-A-2 |
|---|---|
| 1st Connector | TNC Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | IPEX MHF1 Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-178 |
| Color | Brown |
| Features | IP Rated Unmated |
| Frequency - Max [Max] | 3 GHz |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Length [x] | 0.1 m |
| Length [x] | 3.937 in |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | IPEX MHF1 to TNC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 20.47 | |
| 10 | $ 17.74 | |||
| 25 | $ 16.81 | |||
| 50 | $ 16.57 | |||
| 100 | $ 14.62 | |||
| 250 | $ 13.65 | |||
| 500 | $ 13.35 | |||
Description
General part information
CABLE 235 Series
Cable Assembly Coaxial IPEX MHF1 to TNC RG-178 3.937" (100.00mm)
