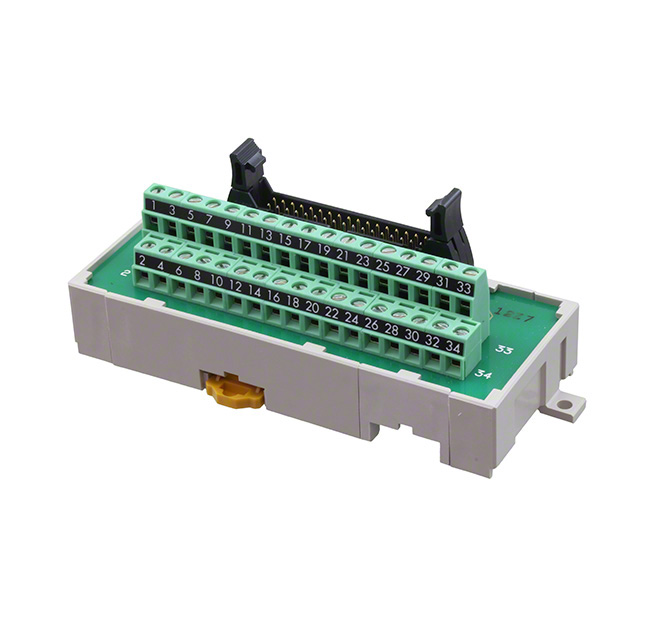

XW2B-34G4

Obsolete

Omron Electronics Inc-EMC Div

INTERFACE MOD HDR 34POS 16-22AWG

Search across all available documentation for this part.

Obsolete

Omron Electronics Inc-EMC Div

INTERFACE MOD HDR 34POS 16-22AWG

Technical Specifications

Parameters and characteristics for this part

Specification	XW2B-34G4

Control Side Cable Retainer	Latches
Control Side Connection [custom]	Male
Control Side Connection [custom]	Rectangular
Current Rating (Per Contact)	1 A
Length [x]	4.429 in
Length [x]	112.5 mm
Positions / Poles	34
Process Side Connection	Terminal Blocks - Screw Connection
Voltage - Rated	125 VAC
Width	45 mm
Width [x]	1.772 in
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	16 AWG

Part	Current Rating (Per Contact)	Process Side Connection	Control Side Cable Retainer	Wire Gauge [Max]	Wire Gauge [Min]	Voltage - Rated	Positions / Poles	Length [x]	Length [x]	Control Side Connection [custom]	Control Side Connection [custom]	Width	Width [x]
Omron Electronics Inc-EMC Div XW2B-34G4	1 A	Terminal Blocks - Screw Connection	Latches	22 AWG	16 AWG	125 VAC	34	4.429 in	112.5 mm	Male	Rectangular	45 mm	1.772 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

34 Position Interface Module Terminal Blocks - Screw Connection To Rectangular, Male 16-22 AWG
