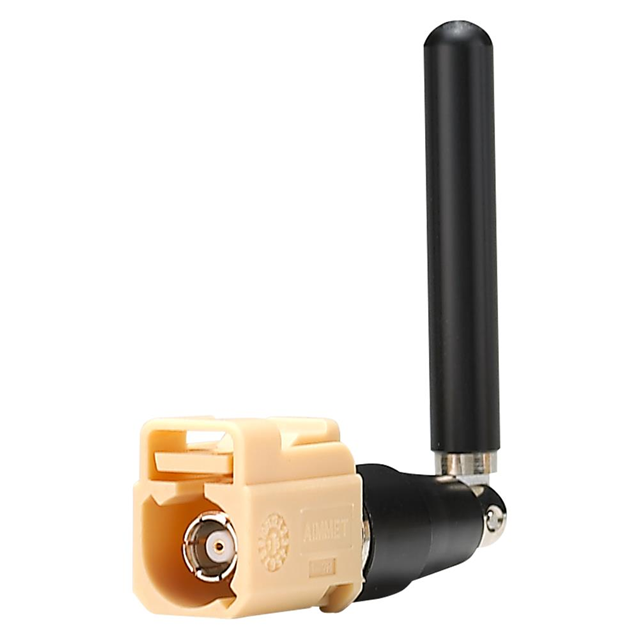

GW.05.0E23
ObsoleteTAOGLAS
GW.05.0E23 DUAL-BAND WIFI 2.4/5.
Deep-Dive with AI
Search across all available documentation for this part.
GW.05.0E23
ObsoleteTAOGLAS
GW.05.0E23 DUAL-BAND WIFI 2.4/5.
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GW.05.0E23 |
|---|---|
| Antenna Type | Tilt, Whip |
| Applications | Zigbee™, Bluetooth, Wi-Fi |
| Frequency (Center/Band) | 3.775 GHz, 4.175 GHz |
| Frequency Group | 4 GHz |
| Frequency Group [Max] | 4 GHz |
| Frequency Group [Min] | 3 GHz |
| Frequency Range [Max] | 5.85 GHz, 2.5 GHz |
| Frequency Range [Min] | 5.15 GHz, 2.4 GHz |
| Gain | 3.73 dBi, 4.09 dBi, 0.64 dBi, 2.46 dBi |
| Height (Max) [Max] | 69.6 mm |
| Height (Max) [Max] | 2.74 in |
| Mounting Type | Connector Mount |
| Number of Bands | 2 |
| Power - Max [Max] | 10 W |
| Return Loss | -3 dB, -5 dB |
| RF Family/Standard | WiFi, Bluetooth, 802.15.4 |
| Termination | Fakra, SMB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 11.43 | |
Description
General part information
GW.05 Series
RF ANTENNA Bluetooth, Wi-Fi, Zigbee™ Whip, Tilt SMB, Fakra Connector Mount
Documents
Technical documentation and resources
No documents available
