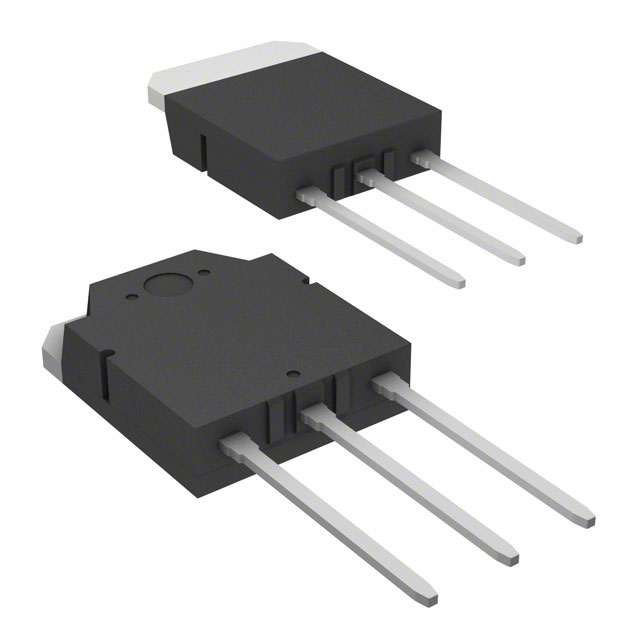

RJH60D7DPK-00#T0

Active

Renesas Electronics Corporation

IGBT FOR INVERTER APPLICATIONS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRJH60D7DPK Datasheet Datasheet

RJH60D7DPK-00#T0

Active

Renesas Electronics Corporation

IGBT FOR INVERTER APPLICATIONS

Deep-Dive with AI

DocumentsRJH60D7DPK Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RJH60D7DPK-00#T0

Current - Collector (Ic) (Max) [Max]	90 A
Gate Charge	130 nC
IGBT Type	Trench
Mounting Type	Through Hole
Operating Temperature	150 °C
Package / Case	SC-65-3, TO-3P-3
Power - Max [Max]	300 W
Supplier Device Package	TO-3P
Switching Energy	600 µJ, 1.1 mJ
Td (on/off) @ 25°C	60 ns, 190 ns
Test Condition	50 A, 5 Ohm, 300 V, 15 V
Vce(on) (Max) @ Vge, Ic	2.2 V
Voltage - Collector Emitter Breakdown (Max) [Max]	600 V

60Dx Series Series

IGBT for Inverter Applications

Part	Vce(on) (Max) @ Vge, Ic	Supplier Device Package	Switching Energy	Gate Charge	Power - Max [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Test Condition [custom]	Test Condition [custom]	Test Condition [custom]	Td (on/off) @ 25°C	Td (on/off) @ 25°C	Mounting Type	IGBT Type	Operating Temperature	Package / Case	Current - Collector (Ic) (Max) [Max]	Test Condition	Td (on/off) @ 25°C	Reverse Recovery Time (trr)	Current - Collector (Ic) (Max)
Renesas Electronics Corporation RJH60D6DPM-00#T1	2.2 V	TO-3PFM	600 µJ 850 µJ	104 nC	50 W	600 V	40 A	15 V 300 V	5 Ohm	160 ns	50 ns	Through Hole	Trench	150 °C	TO-220-3 Full Pack	80 A
Renesas Electronics Corporation RJH60D1DPP-E0#T2	2.5 V	TO-220FP	100 µJ 130 µJ	13 nC	30 W	600 V						Through Hole	Trench	150 °C	TO-220-3 Full Pack		5 Ohm 10 A 15 V 300 V	30 ns 42 ns	70 ns	20 A
Renesas Electronics Corporation RJH60D5BDPQ-E0#T2	2.2 V	TO-247	400 µJ 810 µJ	78 nC	200 W	600 V				130 ns	50 ns	Through Hole	Trench	150 °C	TO-247-3	75 A	5 Ohm 15 V 37 A 300 V		25 ns
Renesas Electronics Corporation RJH60D7ADPK-00#T0	2.2 V	TO-3P	1.1 mJ 600 µJ	130 nC	300 W	600 V					60 ns 190 ns	Through Hole	Trench	150 °C	SC-65-3 TO-3P-3	90 A	5 Ohm 15 V 50 A 300 V
Renesas Electronics Corporation RJH60D0DPK-00#T0	2.2 V	TO-3P	230 µJ 290 µJ	46 nC	140 W	600 V					40 ns 80 ns	Through Hole	Trench	150 °C	SC-65-3 TO-3P-3	45 A	5 Ohm 15 V 22 A 300 V
Renesas Electronics Corporation RJH60D3DPE-00#J3	2.2 V		200 µJ 210 µJ	37 nC	113 W	600 V	17 A	15 V 300 V	5 Ohm			Surface Mount	Trench	150 °C	SC-83	35 A		35 ns 80 ns
Renesas Electronics Corporation RJH60D7DPK-00#T0	2.2 V	TO-3P	1.1 mJ 600 µJ	130 nC	300 W	600 V					60 ns 190 ns	Through Hole	Trench	150 °C	SC-65-3 TO-3P-3	90 A	5 Ohm 15 V 50 A 300 V
Renesas Electronics Corporation RJH60D1DPP-M0#T2	2.5 V	TO-220FL	100 µJ 130 µJ	13 nC	30 W	600 V						Through Hole	Trench	150 °C	TO-220-3 Full Pack		5 Ohm 10 A 15 V 300 V	30 ns 42 ns	70 ns	20 A
Renesas Electronics Corporation RJH60D5DPK-00#T0	2.2 V	TO-3P	400 µJ 650 µJ	78 nC	200 W	600 V						Through Hole	Trench	150 °C	SC-65-3 TO-3P-3	75 A	5 Ohm 15 V 37 A 300 V	50 ns 135 ns
Renesas Electronics Corporation RJH60D7BDPQ-E0#T2	2.2 V	TO-247	1.4 mJ 700 µJ	125 nC	300 W	600 V					60 ns 180 ns	Through Hole	Trench	150 °C	TO-247-3	90 A	5 Ohm 15 V 50 A 300 V		25 ns

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

60Dx Series Series

IGBT product series for Power Factor Correction (PFC), UPS, solar power generation, and welding applications, recommended for 50 to 100 kHz frequencies, and not guaranteed against short circuit.

Documents

Technical documentation and resources

RJH60D7DPK Datasheet

Datasheet
