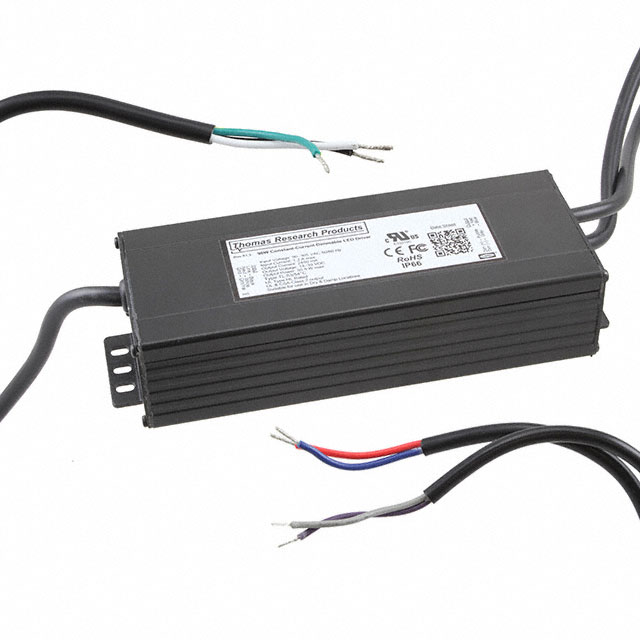

PLED96W-092-C1050-D

Active

Thomas Research Products

LED DRIVER CC AC/DC 31-92V 1.05A

Search across all available documentation for this part.

Active

Thomas Research Products

LED DRIVER CC AC/DC 31-92V 1.05A

Technical Specifications

Parameters and characteristics for this part

Part	Topology	Number of Outputs	Termination Style	Voltage - Output [Min]	Voltage - Output [Max]	Mounting Type	Weight	Weight	Features	Current - Output (Max) [Max]	Power (Watts)	Voltage - Input (Max) [Max]	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Type	Ratings	Approval Agency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output	Current - Output (Max)	Dimming
Thomas Research Products PLED96W-030-C3150	AC DC Converter	1	Wire Leads	10 V	30 VDC	Chassis Mount	1.4 lbs	635 g	OCP OVP SCP	3.15 A	96 W	305 VAC	89 %	65 °C	-30 ░C	90 VAC	Constant Current	IP66 NEMA 6	CE cULus	37 mm	2.31 "	5.98 "	58.8 mm	1.46 "	152 mm
Thomas Research Products PLED96W-034	AC DC Converter	1	Wire Leads			Chassis Mount	1.4 lbs	635 g	OCP OVP SCP		96 W	305 VAC	89 %	65 °C	-30 ░C	90 VAC	Constant Voltage	IP66 NEMA 6	CE cULus	37 mm	2.31 "	5.98 "	58.8 mm	1.46 "	152 mm	34 V	2.8 A
Thomas Research Products PLED96W-092-C1050-D	AC DC Converter	1	Wire Leads	31 V	92 V	Chassis Mount	1.4 lbs	635 g	OCP OVP SCP	1.05 A	96 W	305 VAC	91 %	65 °C	-30 ░C	90 VAC	Constant Current	IP66 NEMA 6	CE cULus	37 mm	2.31 "	5.98 "	58.8 mm	1.46 "	152 mm			Analog

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	500	$ 107.99

General part information

1.05A 31 ~ 92V Constant Current LED Driver AC DC Converter Topology 1 Output
