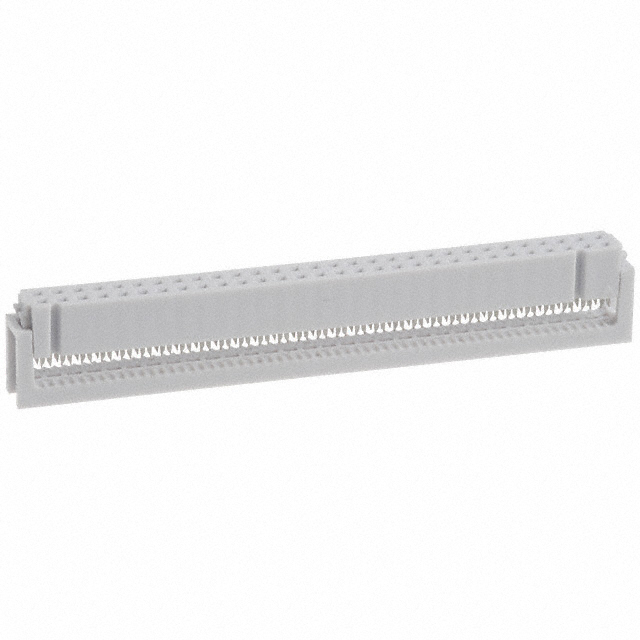

AWP60-8540-T-R

Obsolete

Assmann WSW Components

CONN SOCKET 60POS IDC TIN

Search across all available documentation for this part.

Obsolete

Assmann WSW Components

CONN SOCKET 60POS IDC TIN

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Wire Type	Number of Positions	Row Spacing [x]	Row Spacing	Pitch [x]	Pitch [x]	Mounting Type	Number of Rows	Contact Type	Connector Type	Color	Cable Termination	Features	Contact Finish Thickness
Assmann WSW Components AWP60-7541-T-R	Tin	Ribbon Cable	60	0.1 in	2.54 mm	2.54 mm	0.1 in	Free Hanging (In-Line)	2	Female Socket	Socket	Gray	IDC	Feed Through Polarizing Key Strain Relief
Assmann WSW Components AWP60-8240-T-R	Gold	Ribbon Cable	60	0.1 in	2.54 mm	2.54 mm	0.1 in	Free Hanging (In-Line)	2	Female Socket	Socket	Gray	IDC	Feed Through
Assmann WSW Components AWP 60-7540-T	Tin	Ribbon Cable	60	0.1 in	2.54 mm	2.54 mm	0.1 in	Free Hanging (In-Line)	2	Female Socket	Socket	Gray	IDC	Feed Through Polarizing Key
Assmann WSW Components AWP60-8540-T-R	Tin	Ribbon Cable	60	0.1 in	2.54 mm	2.54 mm	0.1 in	Free Hanging (In-Line)	2	Female Socket	Socket	Gray	IDC	Feed Through
Assmann WSW Components AWP60-7240-T-R	Gold	Ribbon Cable	60	0.1 in	2.54 mm	2.54 mm	0.1 in	Free Hanging (In-Line)	2	Female Socket	Socket	Gray	IDC	Feed Through Polarizing Key	Flash
Assmann WSW Components AWP60-8541-T-R	Tin	Ribbon Cable	60	0.1 in	2.54 mm	2.54 mm	0.1 in	Free Hanging (In-Line)	2	Female Socket	Socket	Gray	IDC	Feed Through Strain Relief

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

60 Position Rectangular Socket Connector IDC Tin

Technical documentation and resources
