1908-4-001-01
ActiveKendall Howard
HIGH SPEED FAN ASSEMBLY KIT
Deep-Dive with AI
Search across all available documentation for this part.
1908-4-001-01
ActiveKendall Howard
HIGH SPEED FAN ASSEMBLY KIT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1908-4-001-01 |
|---|---|
| Air Flow | 3.22 mł/min |
| Air Flow | 115 CFM |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.2 A |
| Fan Type | Tubeaxial |
| Features | Kit |
| Size / Dimension [x] | 119 mm |
| Size / Dimension [y] | 119 mm |
| Termination | Cord and Plug |
| Voltage - Rated | 115 VAC |
| Weight | 771.1 g |
| Weight | 1.7 lbs |
| Width [y] | 38.6 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 59.99 | |
| 2 | $ 58.99 | |||
| 5 | $ 57.99 | |||
Description
General part information
1908-4 Series

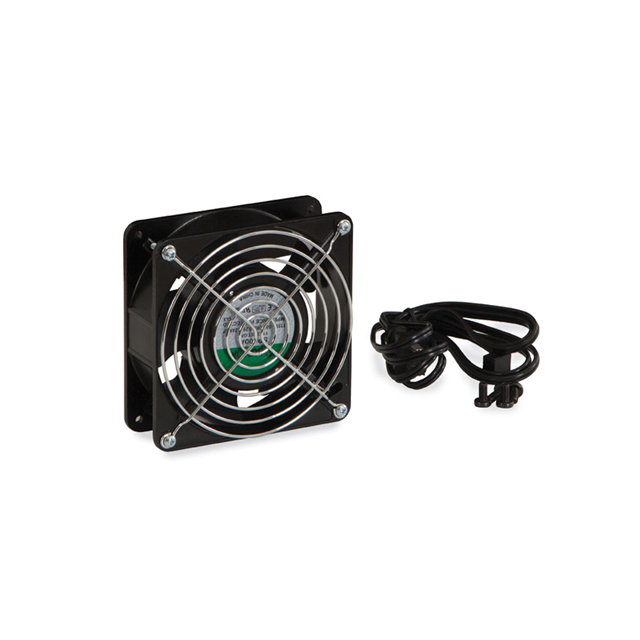

Fan Tubeaxial 115VAC Square - 119mm L x 119mm H Ball 115.0 CFM (3.22m³/min) Cord and Plug
Documents
Technical documentation and resources
