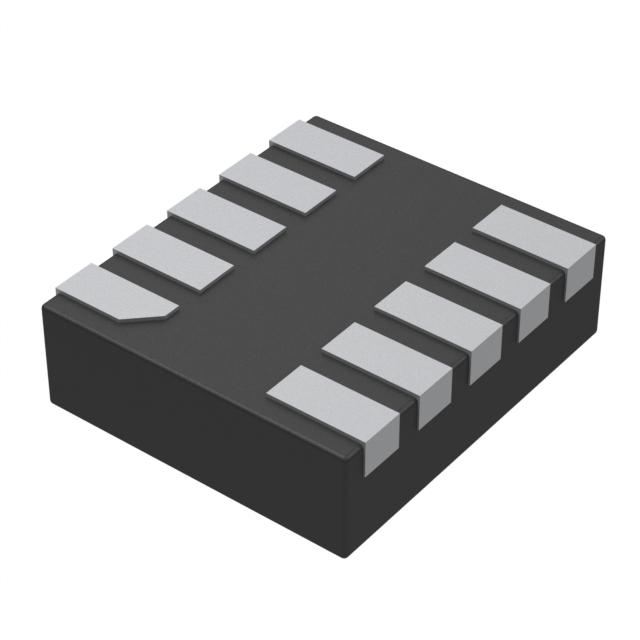

UCLAMP6514P.TNT
ActiveSemtech Corporation
65V, 4-LINE ESD PROTECTION, SGP2510P8
Deep-Dive with AI
Search across all available documentation for this part.
UCLAMP6514P.TNT
ActiveSemtech Corporation
65V, 4-LINE ESD PROTECTION, SGP2510P8
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UCLAMP6514P.TNT |
|---|---|
| Applications | General Purpose |
| Bidirectional Channels [custom] | 4 |
| Capacitance @ Frequency | 10.5 pF |
| Package / Case | 10-UFDFN |
| Power - Peak Pulse | 240 W |
| Voltage - Breakdown (Min) [Min] | 65 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 120 V |
| Voltage - Reverse Standoff (Typ) [Max] | 60 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.17 | |
| 10 | $ 0.95 | |||
| 100 | $ 0.74 | |||
| 500 | $ 0.63 | |||
| 1000 | $ 0.51 | |||
| 2000 | $ 0.48 | |||
| 5000 | $ 0.46 | |||
| Digi-Reel® | 1 | $ 1.17 | ||
| 10 | $ 0.95 | |||
| 100 | $ 0.74 | |||
| 500 | $ 0.63 | |||
| 1000 | $ 0.51 | |||
| 2000 | $ 0.48 | |||
| 5000 | $ 0.46 | |||
| Tape & Reel (TR) | 10000 | $ 0.44 | ||
Description
General part information
UCLAMP6514 Series
120V Clamp Ipp Tvs Diode
Documents
Technical documentation and resources
No documents available
