BU-P122505-0

Active

Mueller Electric Co

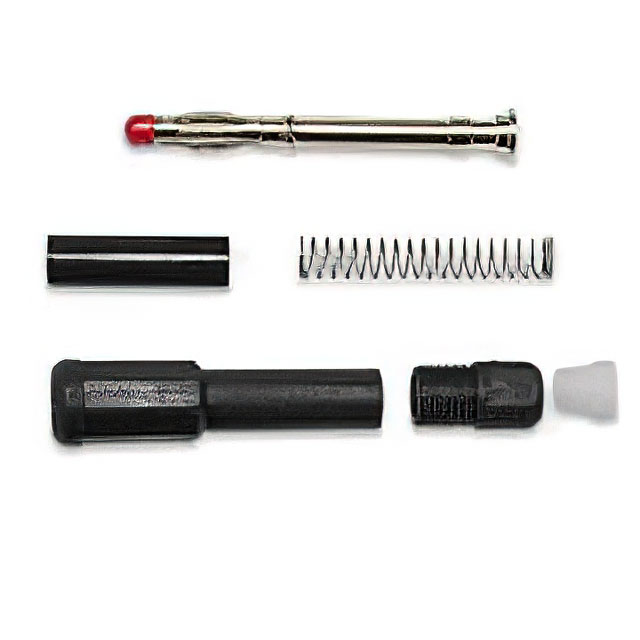

BLACK CABLE RETRACT 4MM SHROUDED BANANA PLUG - 1000V

Search across all available documentation for this part.

Active

Mueller Electric Co

BLACK CABLE RETRACT 4MM SHROUDED BANANA PLUG - 1000V

Technical Specifications

Parameters and characteristics for this part

Specification	BU-P122505-0

Body Material	Polyamide (PA), Nylon, Glass Filled
Color	Black
Contact Material	Beryllium Copper
Gender	Male
Insulation	Retractable, Sheathed
Mounting Type	Free Hanging (In-Line)
Operating Temperature	105 C
Plug/Mating Plug Diameter	Standard Banana
Termination	Solder
Type	Banana Plug
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

Part	Operating Temperature	Type	Color	Body Material	Contact Material	Gender	Mounting Type	Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Plug/Mating Plug Diameter	Termination
Mueller Electric Co BU-P122505-2	105 C	Banana Plug	Red	Polyamide (PA) Nylon Glass Filled	Beryllium Copper	Male	Free Hanging (In-Line)	Retractable Sheathed	22 AWG	17.5 AWG	Standard Banana	Solder
Mueller Electric Co BU-P122505-0	105 C	Banana Plug	Black	Polyamide (PA) Nylon Glass Filled	Beryllium Copper	Male	Free Hanging (In-Line)	Retractable Sheathed	22 AWG	17.5 AWG	Standard Banana	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Banana Plug Connector Standard Banana Solder Black
