7106-1521-002

Active

Radiall USA, Inc.

SSMC / RIGHT ANGLE JACK MALE CRI

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SSMC / RIGHT ANGLE JACK MALE CRI

Technical Specifications

Parameters and characteristics for this part

Specification	7106-1521-002

Body Finish	Gold
Body Material	Brass
Cable Group	196
Cable Group	RG-178
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SSMC
Connector Type	Male Pin, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Right Angle, Panel Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	250 VDC

Part	Mating Cycles	Mounting Type	Number of Ports	Frequency - Max [Max]	Cable Group	Cable Group	Shield Termination	Body Material	Center Contact Material	Contact Termination	Impedance	Dielectric Material	Mounting Feature	Body Finish	Center Contact Plating	Voltage Rating	Housing Color	Connector Type	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]
Radiall USA, Inc. 7106-1521-002	500	Panel Mount Right Angle	1	12.4 GHz	196	RG-178	Crimp	Brass	Beryllium Copper	Crimp	50 Ohms	Polytetrafluoroethylene (PTFE)	Bulkhead - Front Side Nut	Gold	Gold	250 VDC	Gold	Jack Male Pin	SSMC	-65 ░C	165 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 20.68

General part information

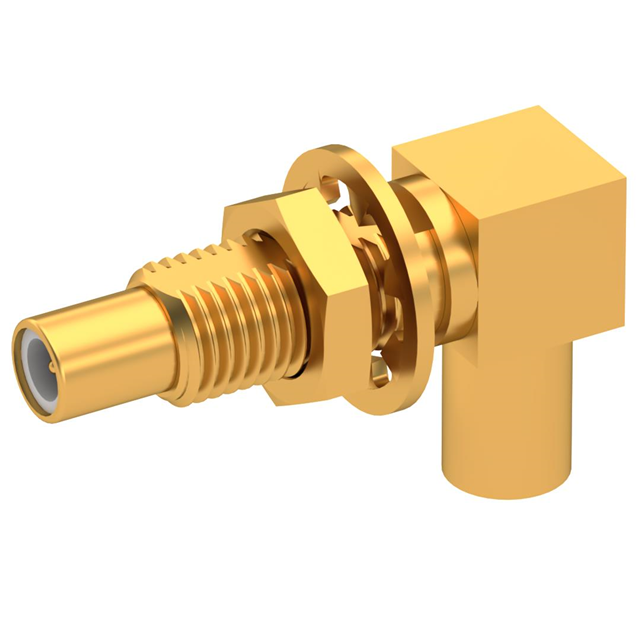

SSMC Connector Jack, Male Pin 50 Ohms Panel Mount, Right Angle Crimp
