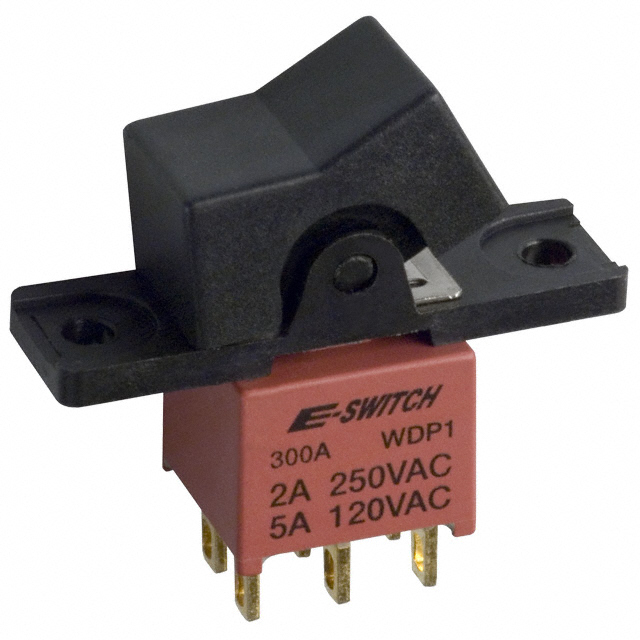

300AWDP1R1BLKM1QE

Active

E-Switch

DPDT 28V 120V ROCKER SWITCHES ROHS

Search across all available documentation for this part.

Active

E-Switch

DPDT 28V 120V ROCKER SWITCHES ROHS

Technical Specifications

Parameters and characteristics for this part

Part	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Mounting Type	Ingress Protection	Termination Style	Color - Actuator/Cap	Actuator Type	Voltage Rating - DC	Electrical Life	Switch Function	Current Rating (Amps)	Features	Actuator Marking	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]
E-Switch 300AWDP1J1VS2QE	DPDT	-30 ░C	85 °C	120 V	Through Hole	IP67 - Dust Tight Waterproof	PC Pin	Black	Concave (Standard V)	28 V	30000 Cycles	On-On	5 A	Epoxy Sealed Terminals	No Marking
E-Switch 300AWDP1R1BLKM1QE	DPDT	-30 ░C	85 °C	120 V	Flange Panel Mount	IP67 - Dust Tight Waterproof	Solder Lug	Black	Concave (Standard V)	28 V	30000 Cycles	On-On	5 A	Epoxy Sealed Terminals	No Marking	7.2 mm	13.14 mm
E-Switch 300AWDP1J3M6QE	DPDT	-30 ░C	85 °C	120 V	Through Hole Right Angle	IP67 - Dust Tight Waterproof	PC Pin	Black	Concave (Standard V)	28 V	30000 Cycles	On-On	5 A	Epoxy Sealed Terminals	No Marking
E-Switch 300AWDP1J1VS3RE	DPDT	-30 ░C	85 °C	20 V	Through Hole	IP67 - Dust Tight Waterproof	PC Pin	Black	Concave (Standard V)	20 V	30000 Cycles	On-On	0.4 VA	Epoxy Sealed Terminals	No Marking

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch DPDT 5A (AC/DC) 120 V Panel Mount, Flange
