010832CD150

Active

Essentra Access Solutions

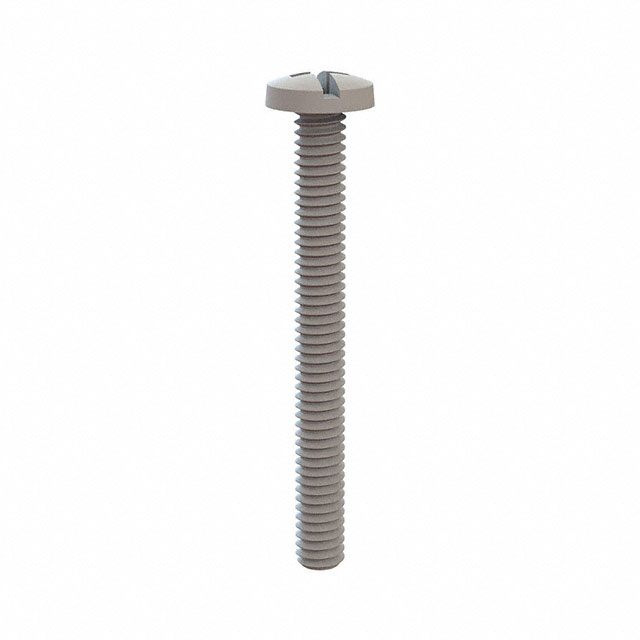

BINDER COMBINATION SCREW 8-32

Search across all available documentation for this part.

Active

Essentra Access Solutions

BINDER COMBINATION SCREW 8-32

Technical Specifications

Parameters and characteristics for this part

Part	Length - Below Head [custom]	Length - Below Head [custom]	Screw Head Type	Drive Type	Thread Size	Head Height	Head Height	Head Diameter [diameter]	Head Diameter [diameter]	Material	Type	Length - Below Head [x]	Length - Below Head [x]	Length - Overall [x]	Length - Overall [x]	Length - Overall	Length - Overall	Length - Below Head	Length - Below Head	Length - Below Head
Essentra Access Solutions 010832CD043	0.438 in	11.11 mm	Binding Head	Combination	#8-32	0.2 in	5.08 mm	8.51 mm	0.335 in	Nylon	Machine Screw
Essentra Access Solutions 010832CD200			Binding Head	Combination	#8-32	0.2 in	5.08 mm	8.51 mm	0.335 in	Nylon	Machine Screw	50.8 mm	2 in	2.2 in	55.88 mm
Essentra Access Solutions 010832CD062			Binding Head	Combination	#8-32	0.2 in	5.08 mm	8.51 mm	0.335 in	Nylon	Machine Screw					20.96 mm	0.825 in	0.625 in	15.88 mm	0.625 in
Essentra Access Solutions 010832CD087			Binding Head	Combination	#8-32	0.2 in	5.08 mm	8.51 mm	0.335 in	Nylon	Machine Screw		0.875 in	1.075 in	27.31 mm			22.23 mm	0.875 in
Essentra Access Solutions 010832CD150			Binding Head	Combination	#8-32	0.2 in	5.08 mm	8.51 mm	0.335 in	Nylon	Machine Screw		1.5 in			43.18 mm	1.7 in		38.1 mm
Essentra Access Solutions 010832CD100			Binding Head	Combination	#8-32	0.2 in	5.08 mm	8.51 mm	0.335 in	Nylon	Machine Screw			1.2 in	30.48 mm				25.4 mm	1 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 0.06

General part information

#8-32 Binding Head Machine Screw Combination Drive Nylon

Technical documentation and resources

No documents available
