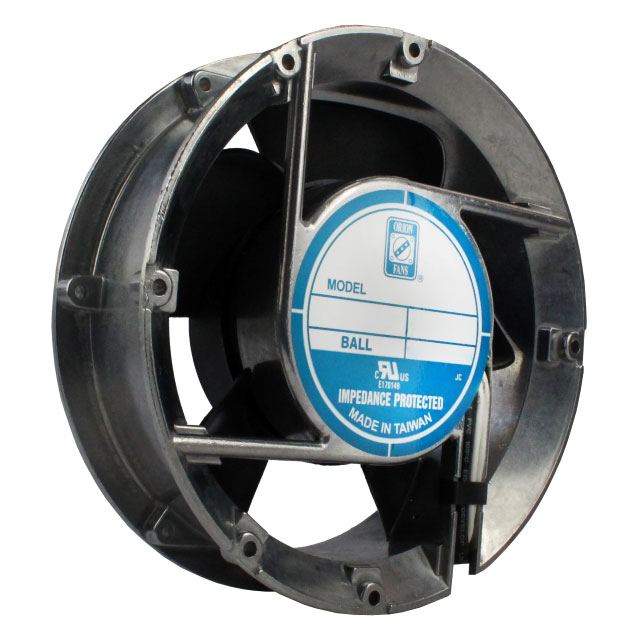

OA172AN-11-3TB

Active

Orion Fans

AC AXIAL FAN, 135 CFM, 16 W, 1800 RPM, 115 VAC, 33 DB, 172 MM X 51 MM, CIRCULAR, TERMINALS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

OA172AN-11-3TB

Active

Orion Fans

AC AXIAL FAN, 135 CFM, 16 W, 1800 RPM, 115 VAC, 33 DB, 172 MM X 51 MM, CIRCULAR, TERMINALS

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OA172AN-11-3TB

Air Flow	3.78 mł/min
Air Flow	135 CFM
Approval Agency	TUV, CE, cURus, UR
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Capacitor
Lifetime @ Temp.	60000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Material - Frame	Aluminum
Noise	33 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	16 W
RPM	1800 RPM
Size / Dimension	Round
Size / Dimension [diameter]	172 mm
Static Pressure	107.1 Pa
Static Pressure	0.43 in H2O
Termination	2 Terminals
Voltage - Rated	115 VAC
Voltage Range [Max]	130 VAC
Voltage Range [Min]	80 VAC
Weight	1.2 kg
Weight	2.7 lbs
Width [y]	2 "

OA172AN Series

Part	Features	Bearing Type	Size / Dimension	Size / Dimension [diameter]	Weight	Weight	Static Pressure	Static Pressure	Fan Type	Air Flow	Air Flow	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Approval Agency	Width [y]	Termination	Material - Blade	Voltage - Rated	RPM	Material - Frame	Lifetime @ Temp.	Voltage Range [Min]	Voltage Range [Max]	Noise
Orion Fans OA172AN-11-2TB	Capacitor	Ball	Round	172 mm	1.2 kg	2.7 lbs	122.1 Pa	0.49 in H2O	Tubeaxial	4.76 m³/min	170 CFM	20 W	70 °C	70 °C	-40 °C	-40 °C	CE cURus TUV UR	2 "	2 Terminals	Polybutylene Terephthalate (PBT)	115 VAC	2400 RPM	Aluminum	60000 Hrs	80 VAC	130 VAC	42 dB
Orion Fans OA172AN-11-1WB	Capacitor	Ball	Round	172 mm	1.2 kg	2.7 lbs	174.4 Pa	0.7 in H2O	Tubeaxial	6.58 m³/min	235 CFM	35 W	70 °C	70 °C	-40 °C	-40 °C	CE cURus TUV UR	2 "	2 Wire Leads	Polybutylene Terephthalate (PBT)	115 VAC	3200 RPM	Aluminum	60000 Hrs	80 VAC	130 VAC	52 dB
Orion Fans OA172AN-11-3TB	Capacitor	Ball	Round	172 mm	1.2 kg	2.7 lbs	107.1 Pa	0.43 in H2O	Tubeaxial	3.78 mł/min	135 CFM	16 W	70 °C	70 °C	-40 °C	-40 °C	CE cURus TUV UR	2 "	2 Terminals	Polybutylene Terephthalate (PBT)	115 VAC	1800 RPM	Aluminum	60000 Hrs	80 VAC	130 VAC	33 dB(A)
Orion Fans OA172AN-11-1TB	Capacitor	Ball	Round	172 mm	1.2 kg	2.7 lbs	174.4 Pa	0.7 in H2O	Tubeaxial	6.58 m³/min	235 CFM	35 W	70 °C	70 °C	-40 °C	-40 °C	CE cURus TUV UR	2 "	2 Terminals	Polybutylene Terephthalate (PBT)	115 VAC	3200 RPM	Aluminum	60000 Hrs	80 VAC	130 VAC	52 dB
Orion Fans OA172AN-22-1TB	Capacitor	Ball	Round	172 mm	1.2 kg	2.7 lbs	174.4 Pa	0.7 in H2O	Tubeaxial	6.58 m³/min	235 CFM	35 W	70 °C	70 °C	-40 °C	-40 °C	CE cURus TUV UR	2 "	2 Terminals	Polybutylene Terephthalate (PBT)	230 VAC	3200 RPM	Aluminum	60000 Hrs	160 VAC	260 VAC	52 dB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	12	$ 49.74
Newark	Each	1	$ 64.80
		1000	$ 59.40

Description

General part information

OA172AN Series

Fan Tubeaxial 115VAC Round - 172mm Dia Ball 135.0 CFM (3.78m³/min) 2 Terminals
