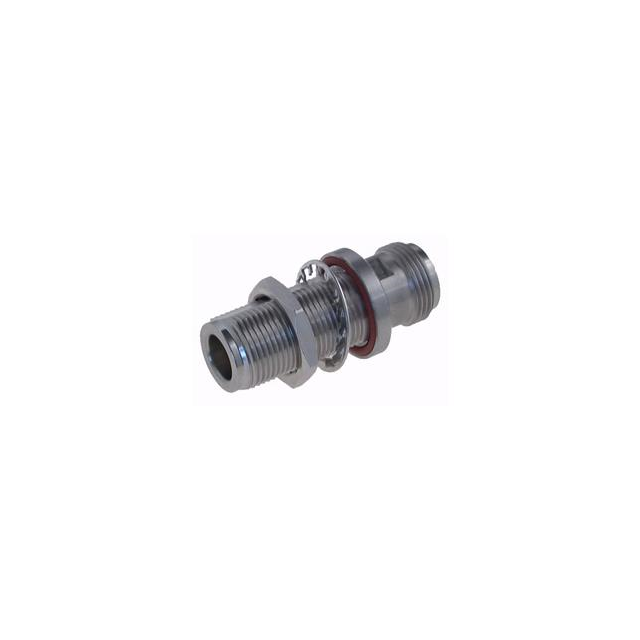

34_N-50-0-51/193_NE
ActiveHuber+Suhner, Inc.
RF CONNECTOR ADAPTER, N-N, PANEL MOUNT, FEMALE-FEMALE, JACK-JACK, ROHS COMPLIANT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 34_N-50-0-51/193_NE |
|---|---|
| Adapter Series | N to N |
| Adapter Type | Jack to Jack |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | N Jack, Female Socket |
| Convert To (Adapter End) | Female Socket, N Jack |
| Frequency - Max [Max] | 18 GHz |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Feature | Bulkhead |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -55 °C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
34_N-50 Series
Adapter Coaxial Connector N Jack, Female Socket To N Jack, Female Socket 50 Ohms
