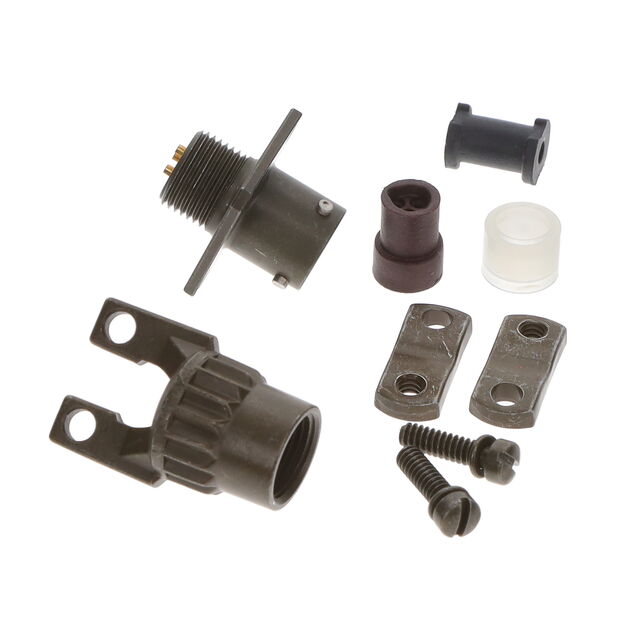

PT00E8-3S-SR

Active

Amphenol Industrial Operations

PT 3C 3#20 SKT RECP

Deep-Dive with AI

Search across all available documentation for this part.

Documents10-101949-010 Datasheet

PT00E8-3S-SR

Active

Amphenol Industrial Operations

PT 3C 3#20 SKT RECP

Deep-Dive with AI

Documents10-101949-010 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PT00E8-3S-SR

Applications	Military, Mass Transit, Instrumentation, Aerospace, Industrial
Backshell Material, Plating	Olive Drab Cadmium, Aluminum
Cable Opening [custom]	3.18 mm
Cable Opening [custom]	0.125 in
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Fastening Type	Bayonet Lock
Features	Backshell, Strain Relief, Cable Clamp
Ingress Protection	Environment Sealed
Insert Material	Neoprene
Mounting Feature	Flange
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum
Shell Size - Insert	8-3
Shielding	Unshielded
Voltage Rating	600 VAC

PT00E Series

Part	Backshell Material, Plating	Applications	Contact Finish - Mating	Features	Mounting Feature	Insert Material	Shielding	Cable Opening [custom]	Cable Opening [custom]	Voltage Rating	Color	Primary Material	Shell Material	Shell Finish	Connector Type	Ingress Protection	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Qualification	Contact Material	Fastening Type	Shell Size - Insert	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]
Amphenol Industrial Operations PT00E16-8P-SR	Aluminum Olive Drab Cadmium	Aerospace Communication Systems Industrial Instrumentation Mass Transit	Gold	Backshell Cable Clamp Strain Relief	Flange	Neoprene	Unshielded	12.7 mm	0.5 in	1000 VAC	Olive Drab	Metal	Aluminum	Olive Drab Chromate over Cadmium	Male Pins Receptacle	Environment Sealed	8	-55 °C	125 °C	N	MIL-DTL-26482 Series I	Copper Alloy	Bayonet Lock
Amphenol Industrial Operations PT00E14-12PW	Aluminum Olive Drab Cadmium	Aerospace Communication Systems Industrial Instrumentation Mass Transit	Gold	Backshell	Flange	Neoprene	Unshielded				Olive Drab	Metal	Aluminum	Olive Drab Chromate over Cadmium	Male Pins Receptacle	Environment Sealed	12	-55 °C	125 °C	W	MIL-DTL-26482 Series I	Copper Alloy	Bayonet Lock	14-12
Amphenol Industrial Operations PT00E-10-6P	Aluminum Olive Drab Cadmium	Aerospace Industrial Instrumentation Mass Transit Military	Gold	Backshell	Flange	Neoprene	Unshielded				Olive Drab	Metal	Aluminum	Olive Drab Chromate over Cadmium	Male Pins Receptacle	Environment Sealed	6	-55 °C	125 °C	N	MIL-DTL-26482 Series I	Copper Alloy	Bayonet Lock	10-6
Amphenol Industrial Operations PT00E12-3S-SR	Aluminum Olive Drab Cadmium	Aerospace Communication Systems Industrial Instrumentation Mass Transit	Gold	Backshell Cable Clamp Strain Relief	Flange	Neoprene	Unshielded	7.92 mm	0.312 in	1000 VAC	Olive Drab	Metal	Aluminum	Olive Drab Chromate over Cadmium	Receptacle Female Sockets	Environment Sealed		-55 °C	125 °C	N	MIL-DTL-26482 Series I	Copper Alloy	Bayonet Lock	12-3
Amphenol Industrial Operations PT00E-10-6S(SR)	Aluminum Olive Drab Cadmium	Aerospace Industrial Instrumentation Mass Transit Military	Gold	Backshell Cable Clamp Strain Relief	Flange	Neoprene	Unshielded	4.78 mm	0.188 in		Olive Drab	Metal	Aluminum	Olive Drab Chromate over Cadmium	Receptacle Female Sockets	Environment Sealed	6	-55 °C	125 °C	N	MIL-DTL-26482 Series I	Copper Alloy	Bayonet Lock	10-6
Amphenol Industrial Operations PT00E8-3S-SR	Aluminum Olive Drab Cadmium	Aerospace Industrial Instrumentation Mass Transit Military	Gold	Backshell Cable Clamp Strain Relief	Flange	Neoprene	Unshielded	3.18 mm	0.125 in	600 VAC	Olive Drab	Metal	Aluminum	Olive Drab Chromate over Cadmium	Receptacle Female Sockets	Environment Sealed		-55 °C	125 °C	N	MIL-DTL-26482 Series I	Copper Alloy	Bayonet Lock	8-3
Amphenol Industrial Operations PT00E-10-6S	Aluminum Olive Drab Cadmium	Aerospace Industrial Instrumentation Mass Transit Military	Gold	Backshell	Flange	Neoprene	Unshielded				Olive Drab	Metal	Aluminum	Olive Drab Chromate over Cadmium	Receptacle Female Sockets	Environment Sealed	6	-55 °C	125 °C	N	MIL-DTL-26482 Series I	Copper Alloy	Bayonet Lock	10-6
Amphenol Industrial Operations PT00E12-4P-SR	Aluminum Olive Drab Cadmium	Aerospace Communication Systems Industrial Instrumentation Mass Transit	Gold	Backshell Cable Clamp Strain Relief	Flange	Neoprene	Unshielded	7.92 mm	0.312 in	600 VAC	Olive Drab	Metal	Aluminum	Olive Drab Chromate over Cadmium	Male Pins Receptacle	Environment Sealed	4	-55 °C	125 °C	N	MIL-DTL-26482 Series I	Copper Alloy	Bayonet Lock	12-4
Amphenol Industrial Operations PT00E-10-6P(SR)	Aluminum Olive Drab Cadmium	Aerospace Industrial Instrumentation Mass Transit Military	Gold	Backshell Cable Clamp Strain Relief	Flange	Neoprene	Unshielded	4.78 mm	0.188 in		Olive Drab	Metal	Aluminum	Olive Drab Chromate over Cadmium	Male Pins Receptacle	Environment Sealed	6	-55 °C	125 °C	N	MIL-DTL-26482 Series I	Copper Alloy	Bayonet Lock	10-6
Amphenol Industrial Operations PT00E14-19S-027	Aluminum Black Zinc Cobalt	Aerospace Communication Systems Industrial Instrumentation Mass Transit	Gold	Backshell	Flange	Neoprene	Unshielded				Black	Metal	Aluminum	Black Zinc Cobalt	Receptacle Female Sockets	Environment Sealed	19	-55 °C	125 °C	N	MIL-DTL-26482 Series I	Copper Alloy	Bayonet Lock		19	14

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 53.48
		10	$ 45.46
		25	$ 42.61
		50	$ 40.58
		100	$ 38.65
		250	$ 36.71

Description

General part information

PT00E Series

3 Position Circular Connector Receptacle, Female Sockets Solder Cup
