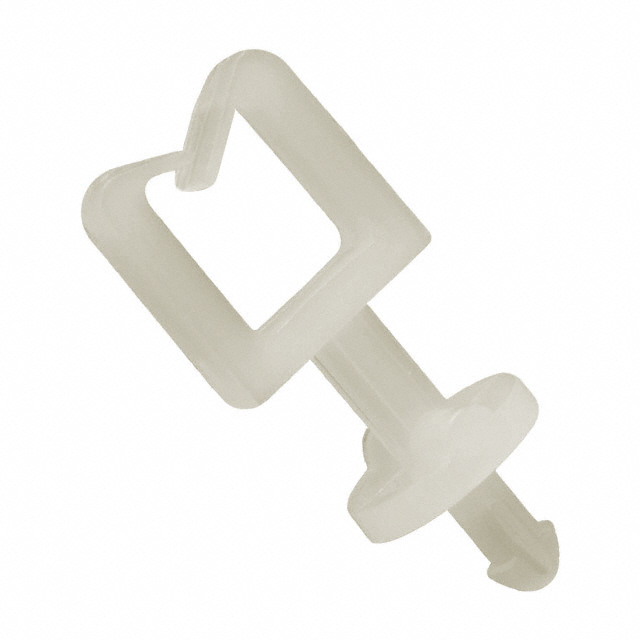

SMWS1-1-01

Active

Essentra Access Solutions

CBL CLIP WIRE SADDLE NAT PUSH IN

Search across all available documentation for this part.

Active

Essentra Access Solutions

CBL CLIP WIRE SADDLE NAT PUSH IN

Technical Specifications

Parameters and characteristics for this part

Specification	SMWS1-1-01

Color	Natural
Height [z]	0.49 in
Height [z]	12.44 mm
Length	0.27 in
Length	6.86 mm
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Push In
Opening Size [x]	4.32 mm
Opening Size [x]	0.17 in
Opening Size [z]	4.06 mm
Opening Size [z]	0.16 in
Panel Hole Size [diameter]	0.07 in
Panel Hole Size [diameter]	1.78 mm
Panel Thickness	2.36 mm
Panel Thickness	0.093 in
Type	Clip, Wire Saddle
Type Attributes	Micro, Standoff
Width [x]	1.91 mm
Width [x]	0.075 in

Part	Length	Length	Height [z]	Height [z]	Color	Material	Width [x]	Width [x]	Panel Thickness	Panel Thickness	Mounting Type	Opening Size [z]	Opening Size [x]	Opening Size [z]	Opening Size [x]	Panel Hole Size [diameter]	Panel Hole Size [diameter]	Type	Material Flammability Rating	Type Attributes
Essentra Access Solutions SMWS1-1-01	0.27 in	6.86 mm	0.49 in	12.44 mm	Natural	Polyamide (PA66) Nylon 6/6	1.91 mm	0.075 in	2.36 mm	0.093 in	Push In	4.06 mm	4.32 mm	0.16 in	0.17 in	0.07 in	1.78 mm	Clip Wire Saddle	UL94 V-2	Micro Standoff

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, Wire Saddle Natural Push In 0.170" L x 0.160" H (4.32mm x 4.06mm)
