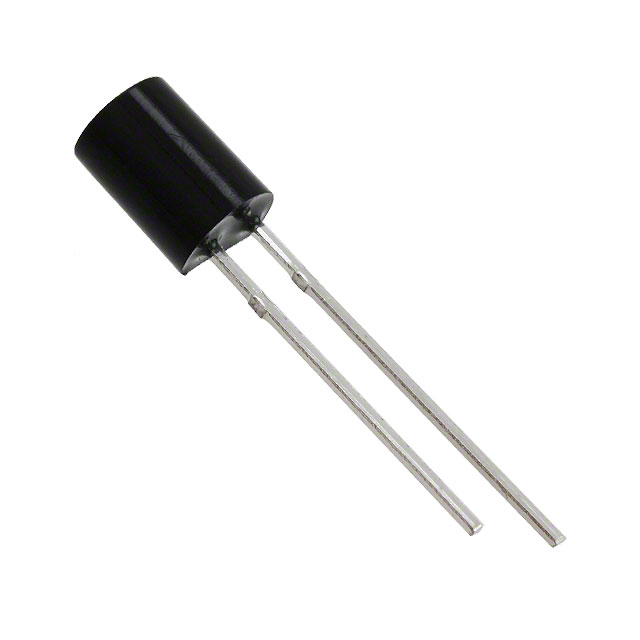

PD438B/S46

Active

Everlight Electronics Co Ltd

PHOTODIODE PIN CHIP 940NM 2-PIN SIDE LOOKER

Search across all available documentation for this part.

Active

Everlight Electronics Co Ltd

PHOTODIODE PIN CHIP 940NM 2-PIN SIDE LOOKER

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Spectral Range [Min]	Spectral Range [Max]	Response Time	Diode Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Wavelength	Voltage - DC Reverse (Vr) (Max) [Max]	Spectral Range [Max] [x]	Spectral Range [Min] [x]
Everlight Electronics Co Ltd PD438C/S46	Through Hole	840 nm	1100 nm	50 ns	PIN	TO-226-2 TO-92-2 Long Body	85 °C	-40 °C	940 nm	170 V
Everlight Electronics Co Ltd PD438C	Through Hole			50 ns	PIN	TO-226-2 TO-92-2 Long Body	85 °C	-25 °C	940 nm	170 V	1100 nm	400 nm
Everlight Electronics Co Ltd PD438B/S46	Through Hole	840 nm	1100 nm	50 ns	PIN	TO-226-2 TO-92-2 Long Body	85 °C	-40 °C	940 nm	170 V
Everlight Electronics Co Ltd PD438B	Through Hole	840 nm	1100 nm	50 ns	PIN	TO-226-2 TO-92-2 Long Body	85 °C	-25 °C	940 nm	170 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3000	$ 0.33

General part information

Photodiode 940nm 50ns TO-226-2, TO-92-2 Long Body

Technical documentation and resources

No documents available
