3405.0169.24

Active

SCHURTER Inc.

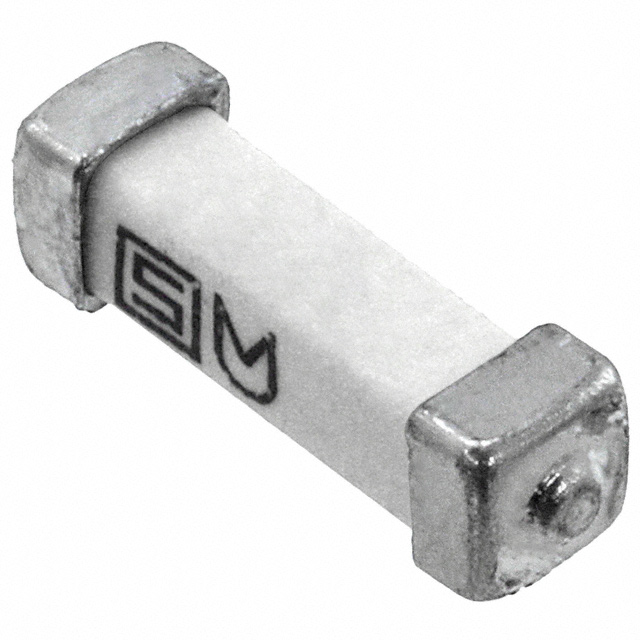

FUSE CHIP FAST ACTING 2A 250V SMD SOLDER PAD 10.1 X 3 X 3MM CERAMIC T/R VDE/CULUS

Search across all available documentation for this part.

Active

SCHURTER Inc.

FUSE CHIP FAST ACTING 2A 250V SMD SOLDER PAD 10.1 X 3 X 3MM CERAMIC T/R VDE/CULUS

Technical Specifications

Parameters and characteristics for this part

Specification	3405.0169.24

Approval Agency	cURus, VDE
Breaking Capacity @ Rated Voltage	100 A
Current Rating (Amps)	2 A
Fuse Type	Board Mount
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	2-SMD, Square End Block
Response Time	Fast Blow
Size / Dimension [x]	10.1 mm
Size / Dimension [x]	0.398 in
Size / Dimension [y]	3 mm
Size / Dimension [y]	0.118 in
Size / Dimension [z]	0.118 "
Size / Dimension [z]	3 mm
Voltage Rating - AC	250 V
Voltage Rating - DC	125 VDC

Part	Voltage Rating - DC	Response Time	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Approval Agency	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Fuse Type	Mounting Type	Breaking Capacity @ Rated Voltage	Current Rating (Amps)	Package / Case
SCHURTER Inc. 3405.0169.24	125 VDC	Fast Blow	3 mm	10.1 mm	0.398 in	0.118 in	0.118 "	3 mm	cURus VDE	250 V	-55 °C	125 °C	Board Mount	Surface Mount	100 A	2 A	2-SMD Square End Block

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 A 250 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
