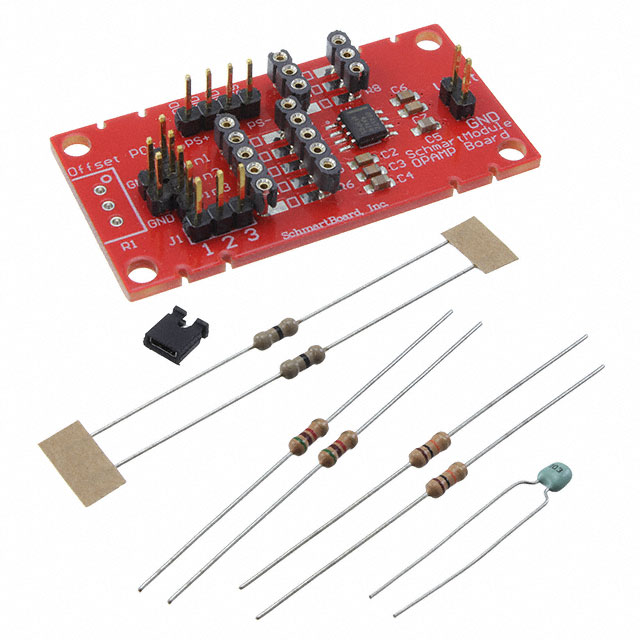

710-0011-01
ActiveSchmartboard, Inc.
OPA172 OP AMP DEVELOPMENT TOOL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
710-0011-01
ActiveSchmartboard, Inc.
OPA172 OP AMP DEVELOPMENT TOOL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 710-0011-01 |
|---|---|
| Amplifier Type | General Purpose |
| Board Type | Fully Populated |
| Channels per IC | 1 - Single |
| Current - Output / Channel | 75 mA |
| Current - Supply (Main IC) | 1.6 mA |
| Output Type | Single-Ended, Rail-to-Rail |
| Slew Rate | 10 V/çs |
| Supplied Contents | Partially Populated Board(s) |
| Utilized IC / Part | OPA172 |
| Voltage - Supply, Single/Dual (±) | 2.25 V |
| Voltage - Supply, Single/Dual (±) [Max] | 18 V |
| Voltage - Supply, Single/Dual (±) [Max] | 36 V |
| Voltage - Supply, Single/Dual (±) [Min] | 4.5 V |
710-0011 Series
| Part | Supplied Contents | Channels per IC | Voltage - Supply, Single/Dual (±) [Max] | Voltage - Supply, Single/Dual (±) [Max] | Voltage - Supply, Single/Dual (±) [Min] | Voltage - Supply, Single/Dual (±) | Current - Supply (Main IC) | Output Type | Amplifier Type | Current - Output / Channel | Utilized IC / Part | Board Type | Slew Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Schmartboard, Inc. | Partially Populated Board(s) | 1 - Single | 18 V | 36 V | 4.5 V | 2.25 V | 1.6 mA | Rail-to-Rail Single-Ended | General Purpose | 75 mA | OPA172 | Fully Populated | 10 V/çs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 18.00 | |
Description
General part information
710-0011 Series
OPA172 1 - Single Channels per IC General Purpose Amplifier Evaluation Board
