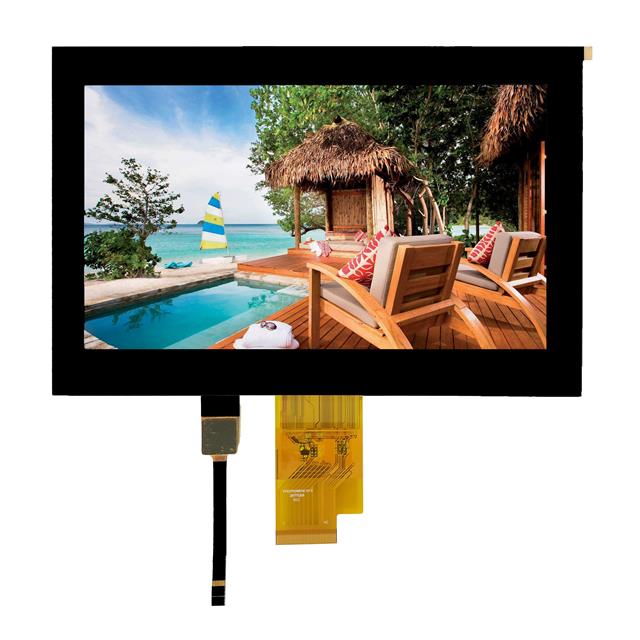

ATM0700M61K-CT

Active

AZ Displays

7.0" MIPI 1024 X 600 1100 NITS I

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ATM0700M61K-CT

Active

AZ Displays

7.0" MIPI 1024 X 600 1100 NITS I

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATM0700M61K-CT

Background Color	Black
Backlight	LED
Diagonal Screen Size	177.8 mm
Diagonal Screen Size	7 in
Display Mode	Transmissive
Display Type	TFT - Color, IPS (In-Plane Switching)
Dot Pitch [x]	0.05 mm
Dot Pitch [y]	0.14 mm
Dot Pixels [x]	1024
Dot Pixels [y]	600 pixels
Graphics Color	Green, Red, Blue
Interface	MIPI
Touchscreen	Capacitive
Viewing Area [x]	155.08 mm
Viewing Area [y]	86.92 mm

ATM0700 Series

Part	Dot Pitch [x]	Dot Pitch [y]	Background Color	Diagonal Screen Size	Diagonal Screen Size	Backlight	Display Mode	Display Type	Dot Size [y]	Dot Size [x]	Dot Pixels [y]	Dot Pixels [x]	Graphics Color	Touchscreen	Viewing Area [x]	Viewing Area [y]	Interface	Controller Type	Interface	Dot Size [z]
AZ Displays ATM0700L6J-T	0.06 mm	0.18 mm	White	177.8 mm	7 in	LED	Transmissive	TFT - Color	0.18 mm	0.19 mm	480	800	Blue Green Red	Resistive	154.08 mm	85.92 mm	LVDS
AZ Displays ATM0700D38B-CTN	0.06 mm	0.18 mm	White	177.8 mm	7 in	LED	Transmissive	TFT - Color			480	800	Blue Green Red		154.6 mm	87 mm
AZ Displays ATM0700L6E-CT	0.06 mm	0.18 mm		177.8 mm	7 in	LED	Transmissive	TFT - Color	0.18 mm	0.19 mm	480	800	Blue Green Red		154.08 mm	85.92 mm	LVDS	FT5316	18
AZ Displays ATM0700H1	0.06 mm	0.18 mm	White	177.8 mm	7 in	LED	Transmissive	TFT - Color TN - Twisted Nematic			480	800	Blue Green Red		156.7 mm	89.1 mm	24-Bit (RGB)
AZ Displays ATM0700M61K-CT	0.05 mm	0.14 mm	Black	177.8 mm	7 in	LED	Transmissive	TFT - Color IPS (In-Plane Switching)			600 pixels	1024	Blue Green Red	Capacitive	155.08 mm	86.92 mm	MIPI
AZ Displays ATM0700M61K	0.05 mm	0.14 mm	Black	177.8 mm	7 in	LED	Transmissive	TFT - Color IPS (In-Plane Switching)			600 pixels	1024	Blue Green Red		156.68 mm	89.45 mm	MIPI
AZ Displays ATM0700L61K	0.05 mm	0.15 mm	White	177.8 mm	7 in	LED	Transmissive	TFT - Color IPS (In-Plane Switching)	0.12 mm		600 pixels	1024	Blue Green Red		154.08 mm	85.92 mm	LVDS			0.15 mm
AZ Displays ATM0700L6J	0.06 mm	0.18 mm	White	177.8 mm	7 in	LED	Transmissive	TFT - Color	0.18 mm	0.19 mm	480	800	Blue Green Red		154.08 mm	85.92 mm	LVDS
AZ Displays ATM0700H1-CT	0.06 mm	0.18 mm	White	177.8 mm	7 in	LED	Transmissive	TFT - Color TN - Twisted Nematic			480	800	Blue Green Red	Capacitive	154.6 mm	87 mm	24-Bit (RGB)
AZ Displays ATM0700L6B	0.06 mm	0.18 mm	White	177.8 mm	7 in	LED	Transmissive	TFT - Color	0.18 mm	0.19 mm	480	800	Blue Green Red		154.08 mm	85.92 mm	LVDS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 76.85
		10	$ 71.88
		100	$ 65.87

Description

General part information

ATM0700 Series

Capacitive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color, IPS (In-Plane Switching) MIPI 7" (177.80mm) 1024 x 600
