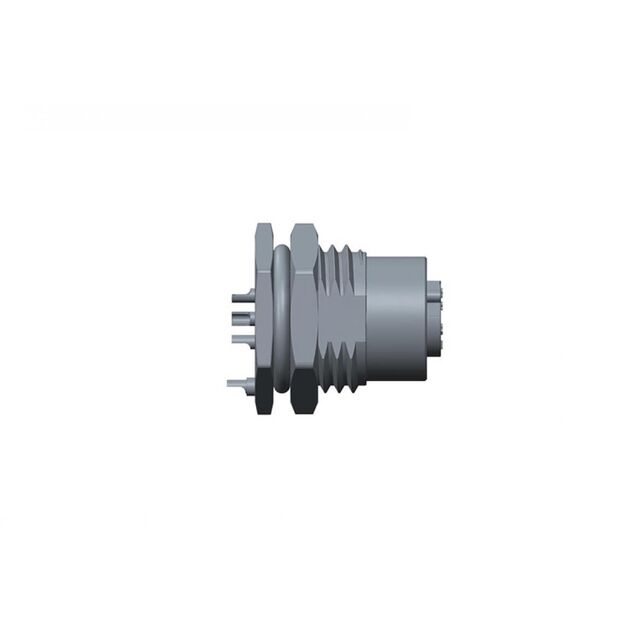

MSAP-05PFFS-SF8002
ActiveAmphenol LTW
SENSOR CONNECTOR, M SERIES, M12, FEMALE, 5 POSITIONS, SOLDER SOCKET, STRAIGHT PANEL MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
MSAP-05PFFS-SF8002
ActiveAmphenol LTW
SENSOR CONNECTOR, M SERIES, M12, FEMALE, 5 POSITIONS, SOLDER SOCKET, STRAIGHT PANEL MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MSAP-05PFFS-SF8002 |
|---|---|
| Color | Black |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 4 A |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic |
| Mounting Feature | Bulkhead - Front Side Nut |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | A |
| Primary Material | Plastic |
| Shell Size - Insert | M12-5 |
| Shielding | Unshielded |
| Voltage Rating | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.12 | |
| 10 | $ 7.34 | |||
| 100 | $ 6.43 | |||
| 1000 | $ 4.74 | |||
Description
General part information
MSAP-05PFFS Series
5 Position Circular Connector Receptacle, Female Sockets Solder Cup
