11126000100

Active

HARTING Technology Group

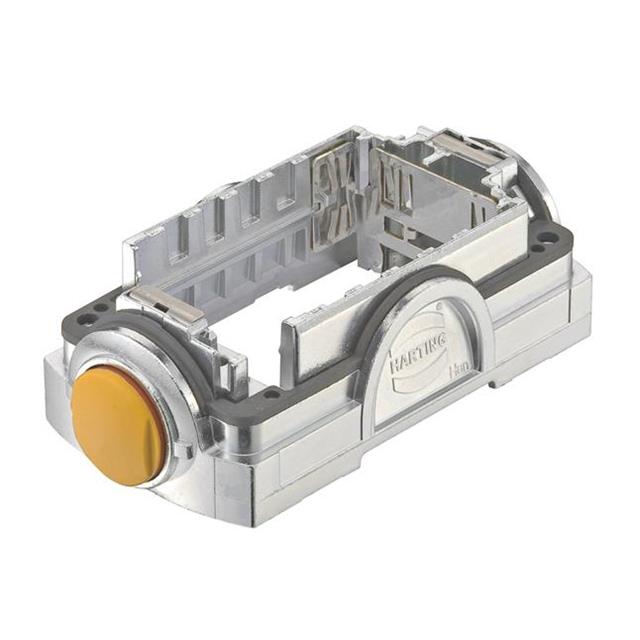

HAN-YELLOCK 60 CARRIER HOOD (PLAIN PUSH BUTTON)

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN-YELLOCK 60 CARRIER HOOD (PLAIN PUSH BUTTON)

Technical Specifications

Parameters and characteristics for this part

Specification	11126000100

Connector Type	Hood - Carrier
Housing Finish	Zinc Passivation
Housing Material	Die Cast, Aluminum
Ingress Protection	IP67, IP65
Lock Location	Push Button Snap Lock on Hood Carrier
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	4.591 in
Size / Dimension [x]	116.6 mm
Size / Dimension [y]	2.205 in
Size / Dimension [y]	56 mm
Size / Dimension [z]	34 mm
Size / Dimension [z]	1.339 in

Part	Lock Location	Ingress Protection	Housing Material	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Housing Finish	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]
HARTING Technology Group 11126000100	Push Button Snap Lock on Hood Carrier	IP65 IP67	Aluminum Die Cast	2.205 in	34 mm	56 mm	4.591 in	1.339 in	116.6 mm	Zinc Passivation	Hood - Carrier	125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood - Carrier Connector IP65/IP67 - Dust Tight, Water Resistant, Waterproof
