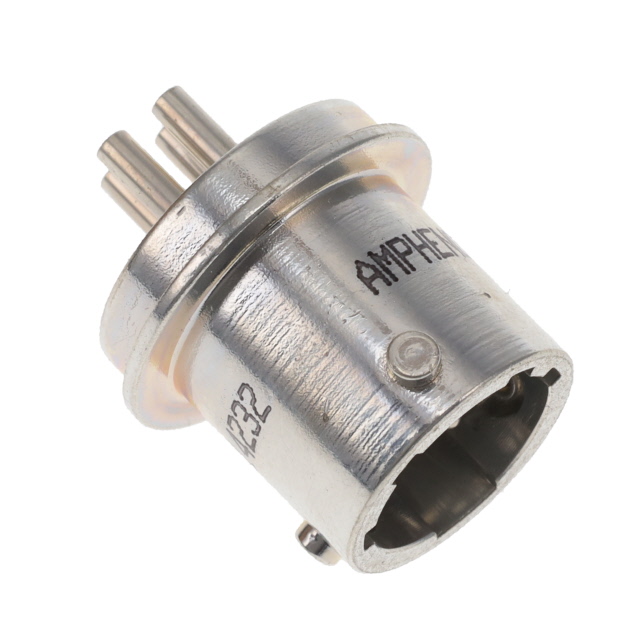

PTIH-8-4P

Active

Amphenol Aerospace Operations

CONN RCPT MALE 4P TIN SOLDER CUP

Search across all available documentation for this part.

Active

Amphenol Aerospace Operations

CONN RCPT MALE 4P TIN SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	PTIH-8-4P

Applications	Military, Mass Transit, Instrumentation, Aerospace, Industrial
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Bayonet Lock
Insert Material	Neoprene
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum
Shell Size - Insert	8-4
Shielding	Unshielded

Part	Shell Finish	Primary Material	Orientation	Number of Positions	Current Rating (Amps)	Fastening Type	Shielding	Color	Connector Type	Shell Size - Insert	Shell Material	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Contact Material
Amphenol Aerospace Operations PTIH-8-4P	Olive Drab Chromate over Cadmium	Metal	N	4	5 A	Bayonet Lock	Unshielded	Olive Drab	Male Pins Receptacle	8-4	Aluminum	Aerospace Industrial Instrumentation Mass Transit Military	-55 °C	125 °C	Neoprene	Copper Alloy
Amphenol Aerospace Operations PTIH-10-6P	Olive Drab Chromate over Cadmium	Metal	N	6	5 A	Bayonet Lock	Unshielded	Olive Drab	Male Pins Receptacle	10-6	Aluminum	Aerospace Industrial Instrumentation Mass Transit Military	-55 °C	125 °C	Neoprene	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Male Pins Solder Cup
