MPCH1055L1R3
ActiveKEMET

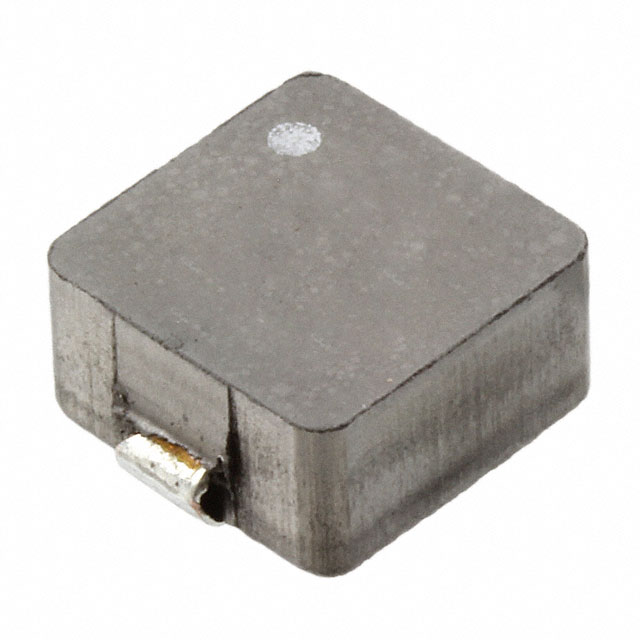

FIXED IND 1.3UH 18.5A 2.3MOHM SM
Deep-Dive with AI
Search across all available documentation for this part.
MPCH1055L1R3
ActiveKEMET
FIXED IND 1.3UH 18.5A 2.3MOHM SM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MPCH1055L1R3 |
|---|---|
| Current - Saturation (Isat) | 17 A |
| Current Rating (Amps) | 18.5 A |
| DC Resistance (DCR) | 2.3 mOhm |
| Height - Seated (Max) [Max] | 0.217 in |
| Height - Seated (Max) [Max] | 5.5 mm |
| Inductance | 1.3 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Metal Composite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension [x] | 11.7 mm, 0.461 in |
| Size / Dimension [y] | 0.394 in, 10 mm |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.00 | |
| 10 | $ 1.70 | |||
| 25 | $ 1.57 | |||
| 50 | $ 1.40 | |||
| 100 | $ 1.17 | |||
| 250 | $ 1.14 | |||
| Digi-Reel® | 1 | $ 2.00 | ||
| 10 | $ 1.70 | |||
| 25 | $ 1.57 | |||
| 50 | $ 1.40 | |||
| 100 | $ 1.17 | |||
| 250 | $ 1.14 | |||
| Tape & Reel (TR) | 500 | $ 1.07 | ||
| 1000 | $ 1.00 | |||
| 2500 | $ 0.97 | |||
| 5000 | $ 0.94 | |||
| Newark | Each (Supplied on Full Reel) | 1000 | $ 1.08 | |
| 2000 | $ 1.02 | |||
| 4000 | $ 0.91 | |||
| 6000 | $ 0.88 | |||
| 10000 | $ 0.85 | |||
Description
General part information
MPCH1055 Series
1.3 µH Shielded Inductor 18.5 A 2.3mOhm Nonstandard
