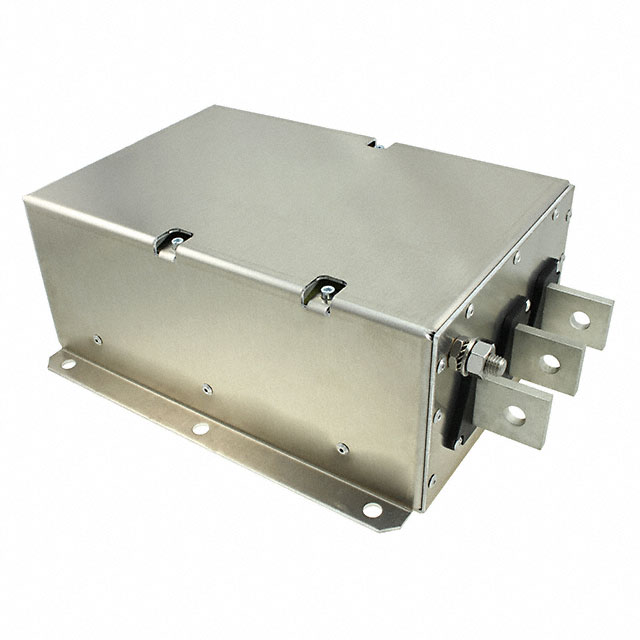

1000APH12L

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 520VAC 1KA CHASSIS

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 520VAC 1KA CHASSIS

Technical Specifications

Parameters and characteristics for this part

Specification	1000APH12L

Applications	General Purpose
Configuration	Three Stage
Current	1 kA
Filter Type	Three Phase (Delta)
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	50 Hz
Mounting Type	Chassis Mount
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Termination Style	Terminal Post
Voltage - Rated AC	520 V

Part	Current	Voltage - Rated AC	Filter Type	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Configuration	Applications	Mounting Type	Termination Style	Frequency - Operating [Max]	Frequency - Operating [Min]
TE Connectivity Raychem Cable Protection 1000APH12L	1 kA	520 V	Three Phase (Delta)	-10 °C	50 °C	Three Stage	General Purpose	Chassis Mount	Terminal Post	60 Hz	50 Hz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 1638.67

General part information

Three Phase (Delta) EMC/EMI Line Filter 1 kA 520V 50/60Hz Three Stage Terminal Post
