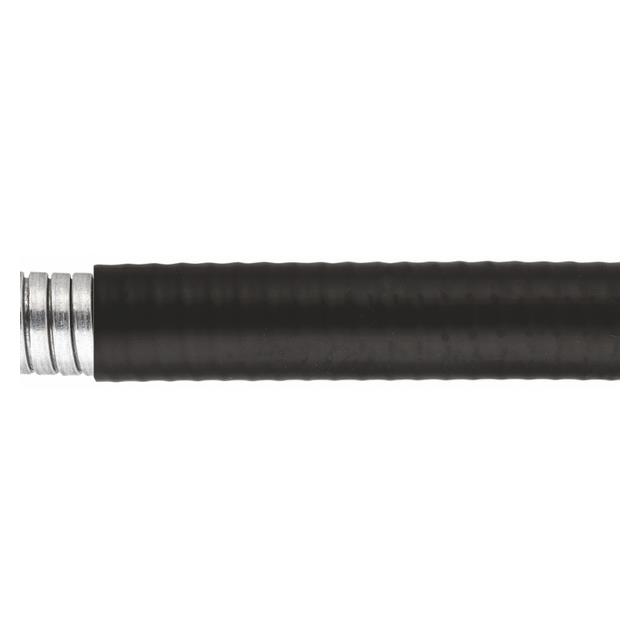

LTPHC20B-25M

Active

HELLERMANNTYTON

CONDUIT LIQ-TIGHT 0.50" DIA STEE

Search across all available documentation for this part.

Active

HELLERMANNTYTON

CONDUIT LIQ-TIGHT 0.50" DIA STEE

Technical Specifications

Parameters and characteristics for this part

Specification	LTPHC20B-25M

Color	Black
Diameter - Inside [diameter]	16 mm
Diameter - Inside [diameter]	0.63 in
Diameter - Outside [diameter]	0.83 in
Diameter - Outside [diameter]	21.08 mm
Environment Protection	UV Resistant, Corrosion Resistant
Features	Self Extinguishing
Length [x]	82.02 ft
Length [x]	25 m
Material	Steel, Galvanized, Thermoplastic Elastomer, Halogen Free
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-60 °C
Type	Protective Hose, Wire Loom
Type Attributes	Convoluted, Corrugated

Part	Operating Temperature [Max]	Operating Temperature [Min]	Environment Protection	Color	Material	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Features	Type Attributes	Type	Length [x]	Length [x]
HELLERMANNTYTON LTPHC20B-25M	150 °C	-60 °C	Corrosion Resistant UV Resistant	Black	Galvanized Halogen Free Steel Thermoplastic Elastomer	0.83 in	21.08 mm	16 mm	0.63 in	Self Extinguishing	Convoluted Corrugated	Protective Hose Wire Loom	82.02 ft	25 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 354.75

General part information

Black Steel, Galvanized, Thermoplastic Elastomer, Halogen Free Convoluted, Corrugated Wire Loom, Protective Hose 0.630" (16.00mm) 82.02' (25.00m)
