1941/3 BK003 - 1941/3 BK003

1941/3 BK003

Active
ALPHA WIRE

MULTI-CONDUCTOR CABLE POLYVINYL CHLORIDE 3CONDUCTORS 18AWG 8.12MM 300VAC BLACK POLYVINYL CHLORIDE 76.2M SPOOL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAlpha Essentials Cable CatalogMaster Catalog+1
1941/3 BK003 - 1941/3 BK003

1941/3 BK003

Active
ALPHA WIRE

MULTI-CONDUCTOR CABLE POLYVINYL CHLORIDE 3CONDUCTORS 18AWG 8.12MM 300VAC BLACK POLYVINYL CHLORIDE 76.2M SPOOL

Deep-Dive with AI

DocumentsAlpha Essentials Cable CatalogMaster Catalog+1

Technical Specifications

Parameters and characteristics for this part

Specification1941/3 BK003
Cable TypeMulti-Conductor
Conductor InsulationPoly-Vinyl Chloride (PVC)
Conductor MaterialCopper, Bare
Conductor Strand [custom]41 strands
Conductor Strand [custom]34 AWG
FeaturesDrain Wire
Jacket (Insulation) MaterialPoly-Vinyl Chloride (PVC)
Jacket ColorBlack
Length10 ft
Length3.05 m, 15.24 m
Length [x]30.5 m
Length [x]100 ft, 50 ft
Number of Conductors3
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-30 ░C
Voltage300 V
Wire Gauge18 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeySpool 1$ 221.18
1$ 118.65
1$ 26.44
2$ 112.06
3$ 24.52
3$ 204.92
5$ 23.13
5$ 194.07
5$ 103.82
10$ 21.84
10$ 98.32
10$ 183.23
25$ 20.23
25$ 170.22
25$ 92.83
50$ 86.24
50$ 19.16
50$ 161.55
100$ 81.85
100$ 140.95
100$ 18.09
NewarkSpool of 250 1$ 713.97

Description

General part information

1941/3 Series

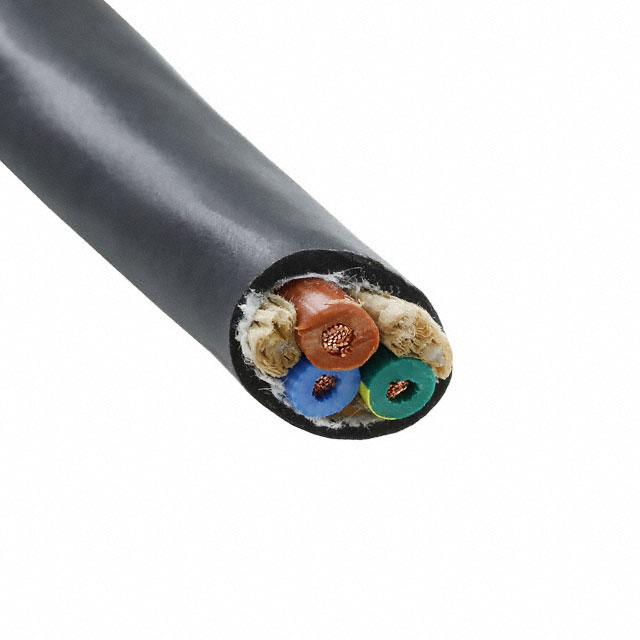

The 1941/3 BK003 is a 3-core Unshielded Cable with bare copper conductor, PVC insulator and a black PVC jacket.
