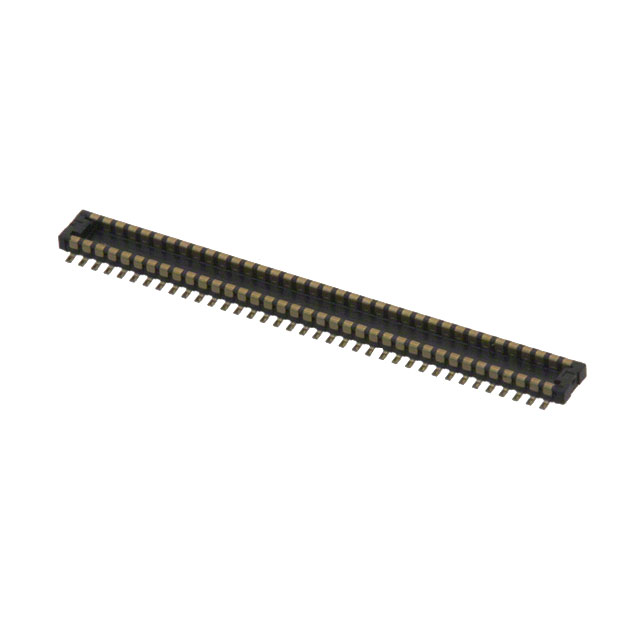

WP7B-P070VA1-R500
UnknownJAE Electronics
CONN PLUG 70POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WP7B-P070VA1-R500
UnknownJAE Electronics
CONN PLUG 70POS SMD GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WP7B-P070VA1-R500 |
|---|---|
| Connector Type | Outer Shroud Contacts, Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 4 Áin |
| Contact Finish Thickness | 0.1 Ám |
| Features | Solder Retention |
| Height Above Board | 0.02 in |
| Height Above Board | 0.5 mm |
| Mated Stacking Heights | 0.7 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 70 |
| Number of Rows | 2 |
| Pitch [x] | 0.016 in |
| Pitch [x] | 0.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
WP7B-P07 Series
70 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
