A3-36DA-2DS(71)

Active

Hirose Electric USA, Inc.

CONN RCPT 36P 0.079 GOLD PCB R/A

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN RCPT 36P 0.079 GOLD PCB R/A

Technical Specifications

Parameters and characteristics for this part

Specification	A3-36DA-2DS(71)

Applications	Telecommunications, General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	1 çm
Contact Finish Thickness - Post	39.4 çin
Contact Length - Post	2.5 mm
Contact Length - Post	0.098 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	4.65 mm
Insulation Height	0.183 in
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	36
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Style	Board to Board, Cable
Termination	Solder

Part	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Height	Insulation Height	Number of Positions	Style	Insulation Material	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Termination	Material Flammability Rating	Mounting Type	Contact Finish - Post	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Color	Contact Type	Fastening Type	Connector Type	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Applications	Contact Shape
Hirose Electric USA, Inc. A3-36DA-2DS(71)	0.079 in	2 mm	4.65 mm	0.183 in	36	Board to Board Cable	Nylon Polyamide (PA)	2.5 mm	0.098 in	1 çm	39.4 çin	All	Solder	UL94 V-0	Through Hole Right Angle	Tin	Phosphor Bronze	0.079 in	2 mm	85 °C	-55 °C	Black	Female Socket	Push-Pull	Receptacle	Gold	0.203 Ám	8 Áin	2	General Purpose Telecommunications	Square

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

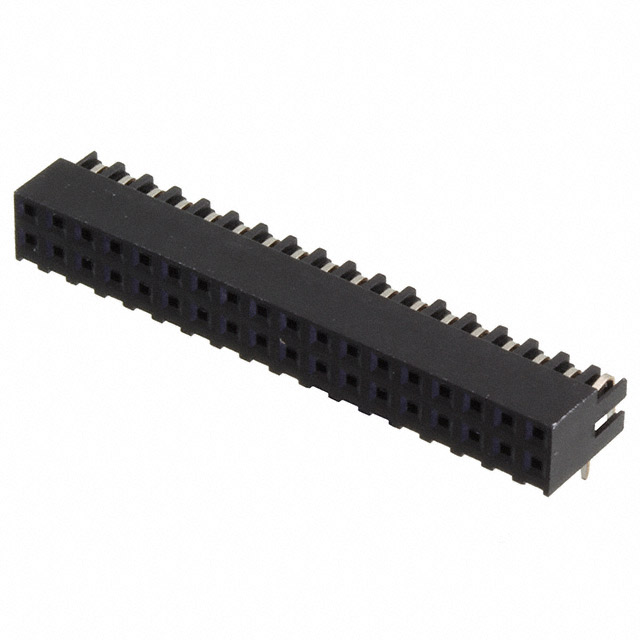

36 Position Receptacle Connector 0.079" (2.00mm) Through Hole, Right Angle Gold
