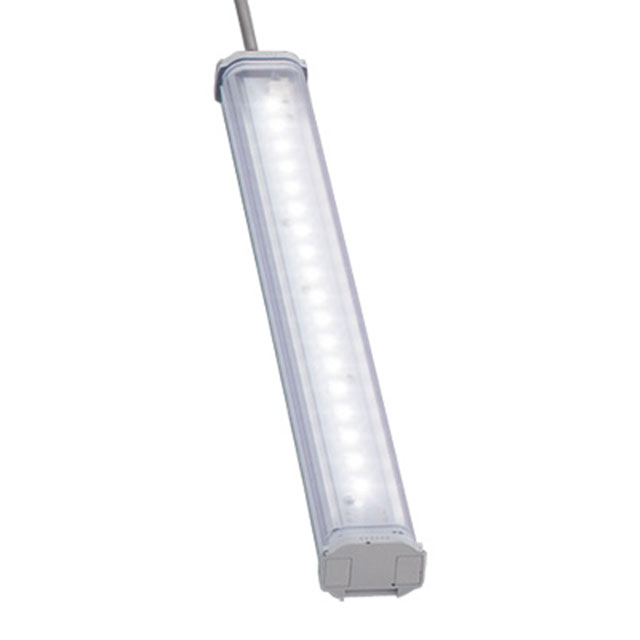

LF2B-C3P-BTHWW2-1M

Active

IDEC

LED BAR IP65 330MM 12V 24VDC ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

IDEC

LED BAR IP65 330MM 12V 24VDC ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	LF2B-C3P-BTHWW2-1M

Approval Agency	cULus, CE
Housing Material	Polycarbonate (PC)
Illumination Color	White, Cool
Ingress Protection	IP65 - Dust Tight, Water Resistant
Length	330 mm
Length [x]	12.99 "
Lens Type	Flat, Clear
Luminous Flux	360 lm
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-30 ░C
Power - Rated	4.9 W
Profile (W x H) [x]	1.57 in
Profile (W x H) [x]	40 mm
Profile (W x H) [y]	29 mm
Profile (W x H) [y]	1.14 in
Rated Life	40000 Hours
Termination Style	Cable Leads
Voltage - Supply	12 VDC, 24 VDC

Part	Lens Type	Housing Material	Profile (W x H) [x]	Profile (W x H) [y]	Profile (W x H) [x]	Profile (W x H) [y]	Voltage - Supply [Min]	Voltage - Supply [Max]	Approval Agency	Rated Life	Luminous Flux	Termination Style	Illumination Color	Length	Length [x]	Ingress Protection	Power - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply
IDEC LF2B-C3P-ATHWW2-1M	Clear Flat	Polycarbonate (PC)	1.57 in	29 mm	40 mm	1.14 in	100 VAC	240 VAC	CE cULus	40000 Hours	360 lm	Cable Leads	Cool White	330 mm	12.99 "	IP65 - Dust Tight Water Resistant	4.4 W	55 °C	-30 ░C
IDEC LF2B-C3P-BTHWW2-1M	Clear Flat	Polycarbonate (PC)	1.57 in	29 mm	40 mm	1.14 in			CE cULus	40000 Hours	360 lm	Cable Leads	Cool White	330 mm	12.99 "	IP65 - Dust Tight Water Resistant	4.9 W	55 °C	-30 ░C	12 VDC 24 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED BAR IP65 330MM 12V 24VDC ROHS COMPLIANT: YES
