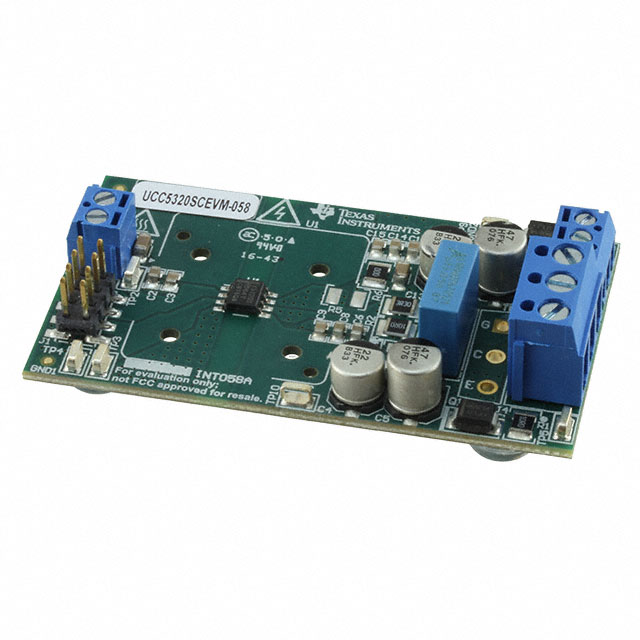

UCC5320SCEVM-058

Active

Texas Instruments

EVALUATION MODULE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UCC5320SCEVM-058

Active

Texas Instruments

EVALUATION MODULE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UCC5320SCEVM-058

Function	Gate Driver
Supplied Contents	Board(s)
Type	Power Management
Utilized IC / Part	UCC5320

UCC5320 Series

Part	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Number of Channels	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Voltage - Output Supply [Min]	Voltage - Output Supply [Max]	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Technology	Package / Case	Package / Case [y]	Package / Case [x]	Voltage - Isolation	Supplier Device Package	Pulse Width Distortion (Max) [Max]	Current - Peak Output	Common Mode Transient Immunity (Min) [Min]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Mounting Type	Supplied Contents	Type	Function	Utilized IC / Part	Package / Case [custom]	Package / Case [custom]
Texas Instruments UCC5320ECD	75 ns	72 ns	1	2.2 A	2.4 A	13.2 V	33 V	CQC CSA UR VDE	125 °C	-40 °C	Capacitive Coupling	8-SOIC	3.9 mm	0.154 in	3000 VAC	8-SOIC	20 ns	4.3 A	100 V/ns	12 ns	10 ns	Surface Mount
Texas Instruments UCC5320SCDR	75 ns	72 ns	1	2.2 A	2.4 A	13.2 V	33 V	CQC CSA UR VDE	125 °C	-40 °C	Capacitive Coupling	8-SOIC	3.9 mm	0.154 in	3000 VAC	8-SOIC	20 ns	4.3 A	100 V/ns	12 ns	10 ns	Surface Mount
Texas Instruments UCC5320SCD	75 ns	72 ns	1	2.2 A	2.4 A	13.2 V	33 V	CQC CSA UR VDE	125 °C	-40 °C	Capacitive Coupling	8-SOIC	3.9 mm	0.154 in	3000 VAC	8-SOIC	20 ns	4.3 A	100 V/ns	12 ns	10 ns	Surface Mount
Texas Instruments UCC5320SCEVM-058																							Board(s)	Power Management	Gate Driver	UCC5320
Texas Instruments UCC5320ECDR	75 ns	72 ns	1	2.2 A	2.4 A	13.2 V	33 V	CQC CSA UR VDE	125 °C	-40 °C	Capacitive Coupling	8-SOIC	3.9 mm	0.154 in	3000 VAC	8-SOIC	20 ns	4.3 A	100 V/ns	12 ns	10 ns	Surface Mount
Texas Instruments UCC5320SCDWV	75 ns	72 ns	1	2.2 A	2.4 A	13.2 V	33 V	CQC UR VDE	125 °C	-40 °C	Capacitive Coupling	8-SOIC			3000 VAC	8-SOIC	20 ns	4.3 A	100 V/ns	12 ns	10 ns	Surface Mount					0.295 in	7.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 58.80

Description

General part information

UCC5320 Series

UCC5320 Gate Driver Power Management Evaluation Board
