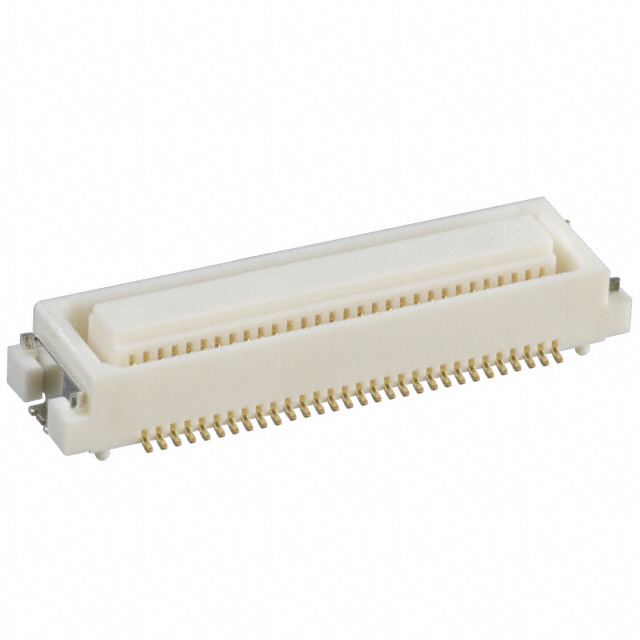

DF17(3.0H)-60DS-0.5V(57)
ActiveHirose Electric USA, Inc.
CONN RCPT 60POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DF17(3.0H)-60DS-0.5V(57)
ActiveHirose Electric USA, Inc.
CONN RCPT 60POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DF17(3.0H)-60DS-0.5V(57) |
|---|---|
| Connector Type | Receptacle, Center Strip Contacts |
| Contact Finish | Gold |
| Features | Solder Retention, Board Guide |
| Height Above Board | 0.118 in |
| Height Above Board | 3 mm |
| Mated Stacking Heights | 4 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 60 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.29 | |
| 10 | $ 1.99 | |||
| 25 | $ 1.91 | |||
| 50 | $ 1.87 | |||
| 100 | $ 1.78 | |||
| 250 | $ 1.61 | |||
| 500 | $ 1.48 | |||
| Digi-Reel® | 1 | $ 2.29 | ||
| 10 | $ 1.99 | |||
| 25 | $ 1.91 | |||
| 50 | $ 1.87 | |||
| 100 | $ 1.78 | |||
| 250 | $ 1.61 | |||
| 500 | $ 1.48 | |||
| Tape & Reel (TR) | 1000 | $ 1.06 | ||
| 2000 | $ 1.02 | |||
| 3000 | $ 0.99 | |||
| 5000 | $ 0.94 | |||
| 10000 | $ 0.92 | |||
Description
General part information
DF17(3.0H) Series
60 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
