PPTC032LJBN-RC

Active

Sullins Connector Solutions

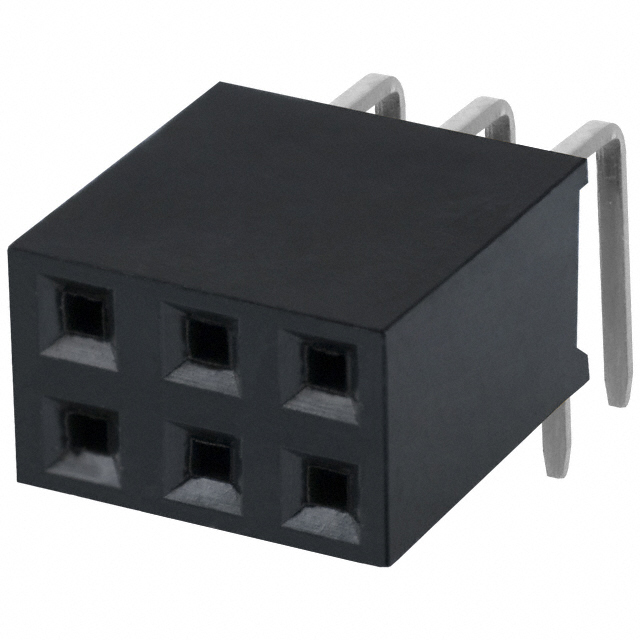

BOARD CONNECTOR, 6 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SOLDER TERMINAL, LOCKING

Search across all available documentation for this part.

Active

Sullins Connector Solutions

BOARD CONNECTOR, 6 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SOLDER TERMINAL, LOCKING

Technical Specifications

Parameters and characteristics for this part

Specification	PPTC032LJBN-RC

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	3.15 mm
Contact Length - Post	0.124 "
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder
Voltage Rating	250 VDC

Part	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Finish - Post	Number of Positions Loaded	Contact Type	Termination	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Material Flammability Rating	Connector Type	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Insulation Color	Insulation Material	Contact Shape	Number of Positions	Voltage Rating	Mounting Type	Contact Length - Post [x]	Insulation Height	Insulation Height
Sullins Connector Solutions PPTC032LJBN	2.54 mm	0.1 in	0.1 in	2.54 mm	Push-Pull	Tin	All	Female Socket	Solder	3.15 mm	0.124 "	3 A	UL94 V-0	Header	2	-40 °C	105 ░C	Phosphor Bronze	Black	Polyester	Square	6	250 VDC	Through Hole Right Angle
Sullins Connector Solutions PPTC032LFBN	2.54 mm	0.1 in	0.1 in	2.54 mm	Push-Pull	Tin	All	Female Socket	Solder	3.2 mm		3 A	UL94 V-0	Header	2	-40 °C	105 ░C	Phosphor Bronze	Black	Polyester	Square	6	250 VDC	Through Hole	0.126 in	0.335 "	8.51 mm
Sullins Connector Solutions PPTC032LFBN-RC	2.54 mm	0.1 in	0.1 in	2.54 mm	Push-Pull	Tin	All	Female Socket	Solder	3.2 mm		3 A	UL94 V-0	Header	2	-40 °C	105 ░C	Phosphor Bronze	Black	Polyester	Square	6	250 VDC	Through Hole	0.126 in	0.335 "	8.51 mm
Sullins Connector Solutions PPTC032LJBN-RC	2.54 mm	0.1 in	0.1 in	2.54 mm	Push-Pull	Tin	All	Female Socket	Solder	3.15 mm	0.124 "	3 A	UL94 V-0	Header	2	-40 °C	105 ░C	Phosphor Bronze	Black	Polyester	Square	6	250 VDC	Through Hole Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Header Connector 0.100" (2.54mm) Through Hole, Right Angle Tin
