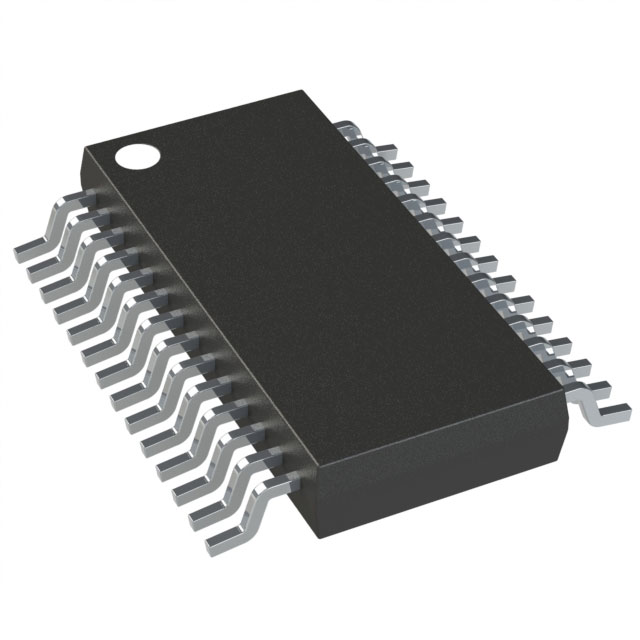

MLX83100LGO-DBA-000-RE

Melexis Technologies NV

IC GATE DRVR HALF-BRIDGE 28TSSOP

Search across all available documentation for this part.

Melexis Technologies NV

IC GATE DRVR HALF-BRIDGE 28TSSOP

Technical Specifications

Parameters and characteristics for this part

Specification	MLX83100LGO-DBA-000-RE

Channel Type	Independent
Current - Peak Output (Source, Sink) [custom]	1.6 A
Current - Peak Output (Source, Sink) [custom]	1.4 A
Driven Configuration	Half-Bridge
Gate Type	N-Channel MOSFET
Grade	Automotive
Mounting Type	Surface Mount
Number of Drivers	4
Operating Temperature [Max]	175 °C
Operating Temperature [Min]	-40 C
Package / Case	Exposed Pad, 28-TSSOP
Package / Case [custom]	4.4 mm
Package / Case [x]	0.173 in
Qualification	AEC-Q100
Rise / Fall Time (Typ) [custom]	7 ns
Rise / Fall Time (Typ) [custom]	7 ns
Supplier Device Package	28-TSSOP-EP
Voltage - Supply [Max]	28 V
Voltage - Supply [Min]	4.5 V

Part	Grade	Technology	Mounting Type	Motor Type - Stepper	Package / Case	Package / Case [custom]	Package / Case [x]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Load	Function	Supplier Device Package	Interface	Motor Type - AC, DC	Output Configuration	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Number of Drivers	Gate Type	Driven Configuration	Channel Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Voltage - Supply [Min]	Voltage - Supply [Max]	Qualification
Melexis Technologies NV MLX83100LGO-DDA-000-SP	Automotive	Power MOSFET	Surface Mount	Bipolar	28-TSSOP Exposed Pad	4.4 mm	0.173 in	-40 °C	150 °C	17 V 52 V	Controller - Speed	28-TSSOP-EP	PWM	Brushed DC	Pre-Driver - Half Bridge (2)
Melexis Technologies NV MLX83100LGO-DBA-000-RE	Automotive		Surface Mount		28-TSSOP Exposed Pad	4.4 mm	0.173 in	-40 C	175 °C			28-TSSOP-EP				1.6 A	1.4 A	4	N-Channel MOSFET	Half-Bridge	Independent	7 ns	7 ns	4.5 V	28 V	AEC-Q100

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	4500	$ 2.26

General part information

Half-Bridge Gate Driver IC 28-TSSOP-EP
