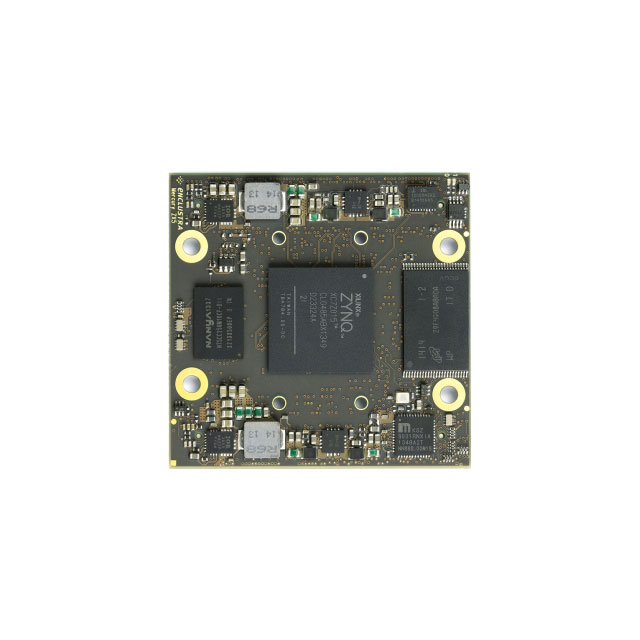

ME-ZX5-15-2I-D10-R3.2
ActiveEnclustra FPGA Solutions
SOM ZYNQ 7Z015 1GB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ME-ZX5-15-2I-D10-R3.2
ActiveEnclustra FPGA Solutions
SOM ZYNQ 7Z015 1GB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ME-ZX5-15-2I-D10-R3.2 |
|---|---|
| Co-Processor | Artix-7, Kintex-7 |
| Connector Type | 168 Pin |
| Core Processor | ARM® Dual-Core Cortex-A9 |
| Flash Size | 512 MB |
| Module/Board Type | FPGA Core |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| RAM Size | 1 GB, 512 MB |
| Size / Dimension [x] | 56 mm |
| Size / Dimension [x] | 2.2 in |
| Size / Dimension [y] | 2.13 in |
| Size / Dimension [y] | 54 mm |
| Speed | 1 GHz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 532.08 | |
| 10 | $ 516.08 | |||
Description
General part information
ME-ZX5 Series
- Embedded Module ARM® Dual-Core Cortex-A9 Artix-7, Kintex-7 1GHz 512MB, 1GB 512MB
