Technical Specifications
Parameters and characteristics for this part
| Specification | V82MA3S |
|---|---|
| Current - Surge | 40 A |
| Energy | 0.34 J |
| Maximum AC Volts [Max] | 50 V |
| Maximum DC Volts [Max] | 66 V |
| Mounting Type | Through Hole |
| Number of Circuits | 1 |
| Package / Case | SOD-83A Axial |
| Varistor Voltage (Max) [Max] | 91 V |
| Varistor Voltage (Min) [Min] | 73 V |
| Varistor Voltage (Typ) | 82 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information

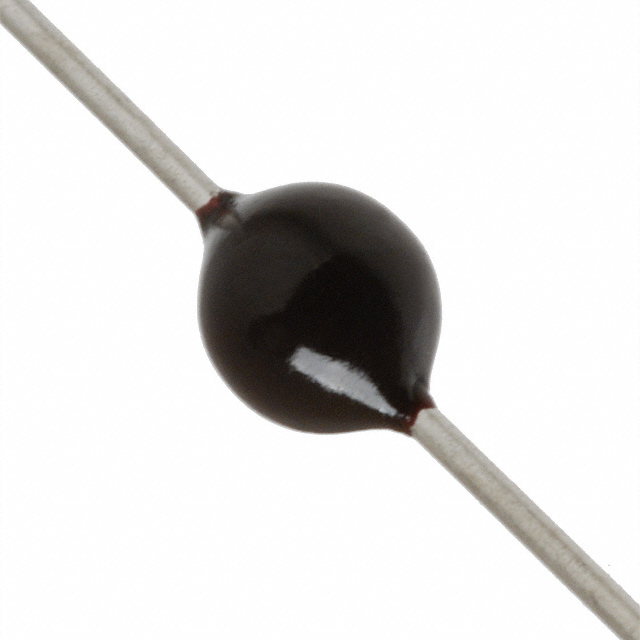

V82MA3S Series
The MA Series of Transient surge suppressors are axial-lead metal oxide varistors (MOVs) for use in a wide variety of board level industrial and commercial electronic equipment. They are intended to protect components and signal/data lines from low energy transients where the small axial lead package is required. The MA Series is offered with standard (S suffix) or tightened (B suffix) clamping voltage. See MA Series Device Ratins and Specifications table for part number and brand information.
