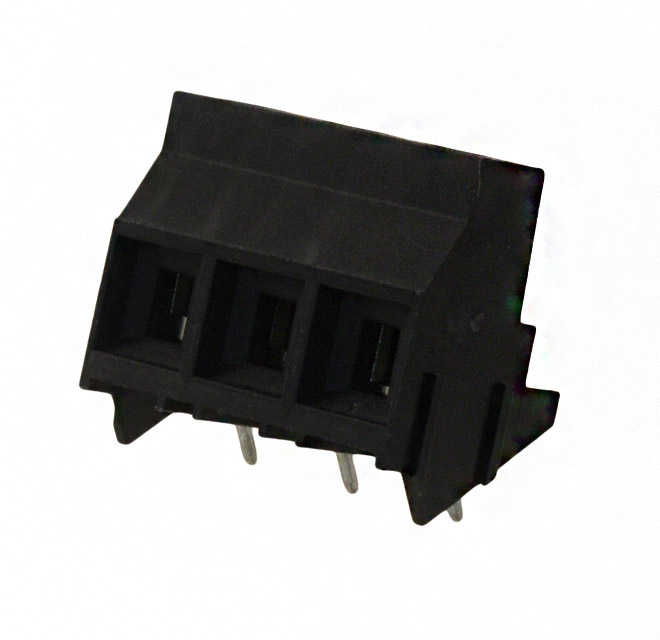

ESPM03230

Active

AMPHENOL PCD

TERM BLOCK 3POS 9.53MM PCB

Search across all available documentation for this part.

Active

AMPHENOL PCD

TERM BLOCK 3POS 9.53MM PCB

Technical Specifications

Parameters and characteristics for this part

Part	Color	Current	Wire Termination	Clamp Material - Plating	Positions Per Level	Screw Material - Plating	Torque - Screw	Torque - Screw	Contact Material - Plating	Mating Orientation	Voltage	Pitch [x]	Pitch [x]	Wire Gauge [Min]	Wire Gauge [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Features	Number of Levels
AMPHENOL PCD ESPM03200	Black	30 A	Screw - Rising Cage Clamp	Copper Alloy - Nickel Plated	3	Copper Alloy - Nickel Plated	0.8 Nm	7.1 Lb-In	Copper Alloy - Tin Plated	Horizontal with Board	300 V	9.53 mm	0.375 in	10 AWG	30 AWG	-40 °C	110 °C	Through Hole	Interlocking (Side)	1
AMPHENOL PCD ESPM03100	Black	30 A	Screw - Rising Cage Clamp	Copper Alloy - Nickel Plated	3	Copper Alloy - Nickel Plated	0.8 Nm	7.1 Lb-In	Copper Alloy - Tin Plated	Horizontal with Board	300 V	6.35 mm	0.25 in	10 AWG	30 AWG	-40 °C	110 °C	Through Hole	Interlocking (Side)	1
AMPHENOL PCD ESPM03130	Black	30 A	Screw - Rising Cage Clamp	Copper Alloy - Nickel Plated	3	Copper Alloy - Nickel Plated	0.8 Nm	7.1 Lb-In	Copper Alloy - Tin Plated	Angled	300 V	6.35 mm	0.25 in	10 AWG	24 AWG	-40 °C	110 °C	Through Hole	Interlocking (Side)	1
AMPHENOL PCD ESPM03230	Black	30 A	Screw - Rising Cage Clamp	Copper Alloy - Nickel Plated	3	Copper Alloy - Nickel Plated	0.8 Nm	7.1 Lb-In	Copper Alloy - Tin Plated	Angled	300 V	9.53 mm	0.375 in	10 AWG	24 AWG	-40 °C	110 °C	Through Hole	Interlocking (Side)	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Wire to Board Terminal Block Angled 0.375" (9.53mm) Through Hole
