GS15U-0P1J

Obsolete

MEAN WELL USA Inc.

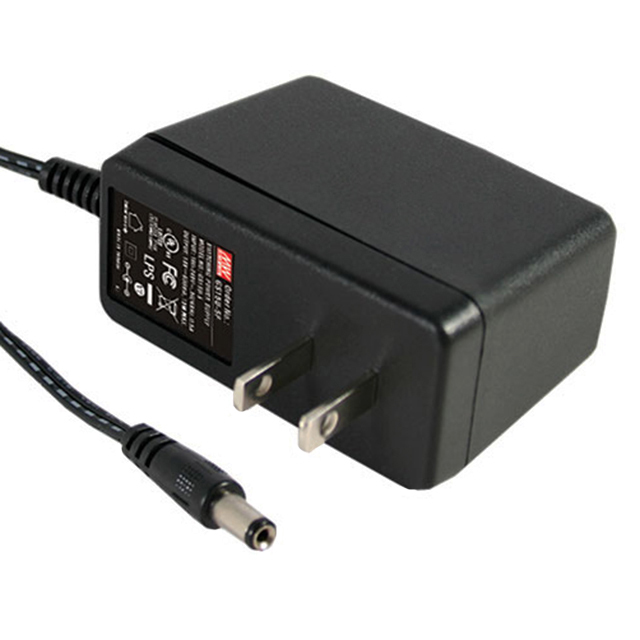

AC/DC WALL MNT ADAPTER 3.3V 7.2W

Search across all available documentation for this part.

Obsolete

MEAN WELL USA Inc.

AC/DC WALL MNT ADAPTER 3.3V 7.2W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Output	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)	Form	Region Utilized	No Load Power Consumption [Max]	Input Type	Efficiency	Current - Output (Max) [Max]	Cord Length	Cord Length	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Polarization	Applications	Input Connector	Output Connector	Output Connector [diameter]	Output Connector [z]	Approval Agency	Cord Length
MEAN WELL USA Inc. GS15U-5P1J	18 V	90 VAC	264 VAC	15 W	Wall Mount (Class II)	North America	75 mW	Fixed Blade	Level VI	830 mA	70.9 in	1.8 m	34 mm	50 mm	2.8 in	1.34 in	1.97 "	71 mm	Positive Center	ITE (Commercial)	NEMA 1-15P	Barrel Plug	2.1 mm 5.5 mm	11 mm	CE cULus
MEAN WELL USA Inc. GS15U-0P1J	3.3 V	90 VAC	264 VAC	7.2 W	Wall Mount (Class II)	North America		Fixed Blade		2.18 A									Positive Center			Barrel Plug	2.1 mm 5.5 mm	11 mm	CE cULus
MEAN WELL USA Inc. GS15U-2P1J	9 V	90 VAC	264 VAC	15 W	Wall Mount (Class II)	North America	75 mW	Fixed Blade	Level VI	1.66 A		47.2 in	34 mm	50 mm	2.8 in	1.34 in	1.97 "	71 mm	Positive Center	ITE (Commercial)	NEMA 1-15P	Barrel Plug	2.1 mm 5.5 mm	11 mm	CE cULus	1.2 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

3.3V 7.2 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
