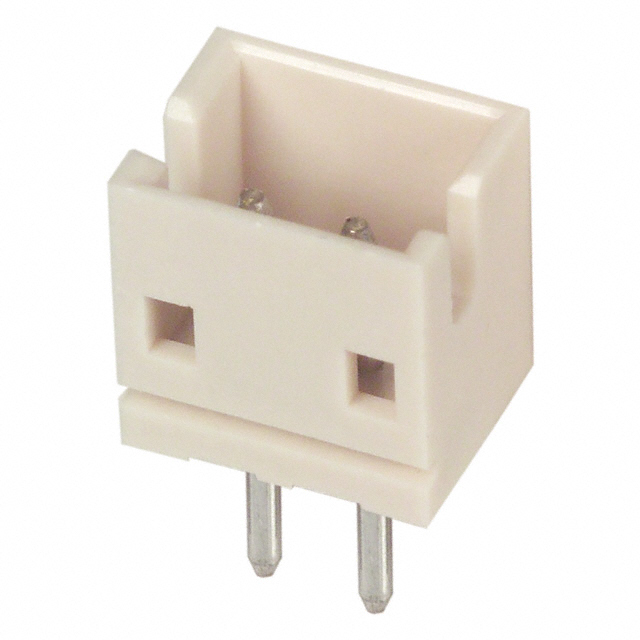

B2B-ZR

Active

JST Sales America Inc.

CONN HEADER VERT 2POS 1.5MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER VERT 2POS 1.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	B2B-ZR

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating [custom]	2.4 mm
Contact Length - Mating [custom]	0.094 in
Contact Length - Post [x]	0.106 in
Contact Length - Post [x]	2.69 mm
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Detent Lock
Insulation Color	Natural
Insulation Height	0.177 in
Insulation Height	4.5 mm
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mated Stacking Heights	5.6 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Overall Contact Length	0.256 in
Overall Contact Length	6.5 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	50 V

Part	Mated Stacking Heights	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Color	Shrouding	Termination	Contact Type	Number of Positions Loaded	Contact Length - Mating [custom]	Contact Length - Mating [custom]	Voltage Rating	Fastening Type	Contact Finish - Post	Style	Connector Type	Mounting Type	Insulation Material	Number of Positions	Overall Contact Length	Overall Contact Length	Insulation Height	Insulation Height	Number of Rows	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Material Flammability Rating
JST Sales America Inc. B2B-ZR	5.6 mm	0.106 in	2.69 mm	Natural	Shrouded - 4 Wall	Solder	Male Pin	All	2.4 mm	0.094 in	50 V	Detent Lock	Tin	Board to Cable/Wire	Header	Through Hole	Polyamide (PA66) Nylon 6/6 Glass Filled	2	0.256 in	6.5 mm	0.177 in	4.5 mm	1	Brass	-25 °C	85 °C	Circular	UL94 V-0
JST Sales America Inc. B2B-ZR-3.4	5.6 mm	0.134 in	3.4 mm	Natural	Shrouded - 4 Wall	Solder	Male Pin	All	2.4 mm	0.094 in	50 V	Detent Lock	Tin	Board to Cable/Wire	Header	Through Hole	Polyamide (PA66) Nylon 6/6 Glass Filled	2			0.177 in	4.5 mm	1	Brass	-25 °C	85 °C	Circular	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 2 position 0.059" (1.50mm)
