SIM3U144-B-GM

Silicon Labs

IC MCU 32BIT 64KB FLASH 40QFN

Search across all available documentation for this part.

Silicon Labs

IC MCU 32BIT 64KB FLASH 40QFN

Technical Specifications

Parameters and characteristics for this part

Specification	SIM3U144-B-GM

Connectivity	UART/USART, USB, I2C, IrDA, SmartCard, SPI
Core Processor	ARM® Cortex®-M3
Core Size	32-Bit Single-Core
Data Converters	A/D 18x12b, D/A 2x10b
Mounting Type	Surface Mount
Number of I/O	28
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal

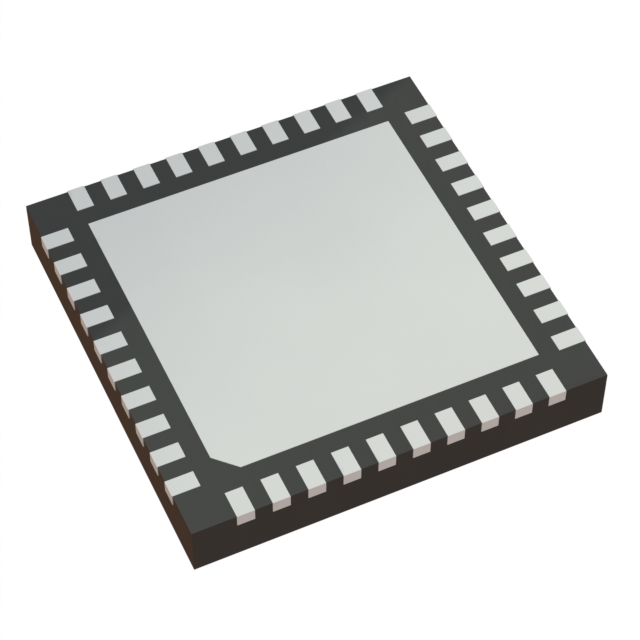

Package / Case	40-VFQFN Exposed Pad
Peripherals	Brown-out Detect/Reset, DMA, POR, WDT, PWM, I2S
Program Memory Size	64 KB
Program Memory Type	FLASH
RAM Size	16 K
Speed	80 MHz
Supplier Device Package	40-QFN (6x6)
Voltage - Supply (Vcc/Vdd) [Max]	3.6 V
Voltage - Supply (Vcc/Vdd) [Min]	1.8 V

Part	Core Processor	Core Size	Mounting Type	Oscillator Type	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	RAM Size	Package / Case	Program Memory Size	Connectivity	Speed	Peripherals	Data Converters	Number of I/O	Supplier Device Package	Program Memory Type	Operating Temperature [Max]	Operating Temperature [Min]
Silicon Labs SIM3U144-B-GM	ARM® Cortex®-M3	32-Bit Single-Core	Surface Mount	Internal	1.8 V	3.6 V	16 K	40-VFQFN Exposed Pad	64 KB	I2C IrDA SmartCard SPI UART/USART USB	80 MHz	Brown-out Detect/Reset DMA I2S POR PWM WDT	A/D 18x12b D/A 2x10b	28	40-QFN (6x6)	FLASH	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	2450	$ 9.09

General part information

ARM® Cortex®-M3 SiM3U1xx Microcontroller IC 32-Bit Single-Core 80MHz 64KB (64K x 8) FLASH 40-QFN (6x6)
