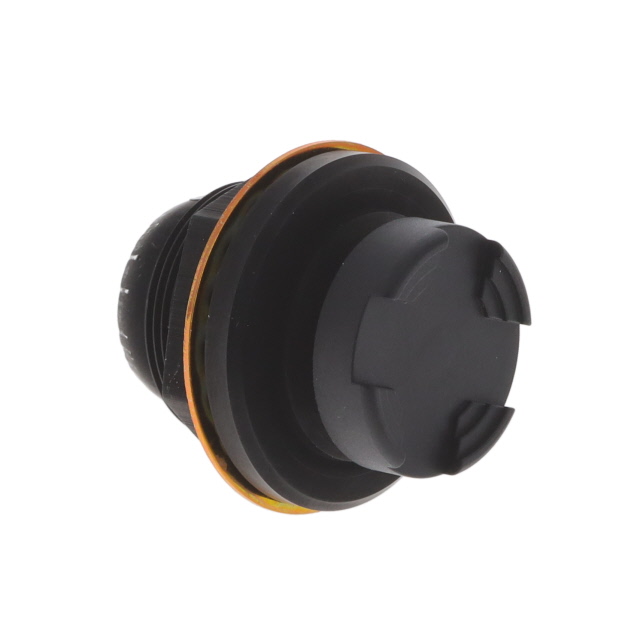

04J-AP-T01

Active

Grayhill Inc.

JOYSTICKS ACTIVE 4DIRECTION 2000MA PC PINS

Search across all available documentation for this part.

Active

Grayhill Inc.

JOYSTICKS ACTIVE 4DIRECTION 2000MA PC PINS

Technical Specifications

Parameters and characteristics for this part

Specification	04J-AP-T01

Actuator Type	Castle
Contact Finish	Gold
Contact Material	Nickel
Current Rating (Amps)	2 A
Electrical Life	100000 Cycles
Ingress Protection	IP68 - Dust Tight, Waterproof
Mechanical Life	100000 Cycles
Operating Force	454 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Output	Digital (Mechanical Switch)
Switch Function	4-Way Directional, Center Select
Termination Style	PC Pin
Type	2 Axis
Type	Navigation Switch
Voltage Rating - AC	115 V
Voltage Rating - DC	28 V

Joysticks ASM,JOYSTICK,4WAY,SL

Part	Current Rating (Amps)	Type	Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Operating Force	Electrical Life	Actuator Type	Switch Function	Output	Voltage Rating - DC	Contact Material	Contact Finish	Mechanical Life	Ingress Protection	Features	Voltage Rating - AC
Grayhill Inc. 04J-AP-C02	10 mA	2 Axis	Navigation Switch	85 °C	-55 °C	PC Pin	454 gf	100000 Cycles	Conical	4-Way Directional Center Select	Digital (Mechanical Switch)	5 V	Nickel	Gold	100000 Cycles	IP68 - Dust Tight Waterproof
Grayhill Inc. 04J-AP-C12	10 mA	2 Axis	Navigation Switch	85 °C	-55 °C	PC Pin	454 gf	100000 Cycles	Conical	4-Way Directional Center Select	Digital (Mechanical Switch)	5 V	Nickel	Gold	100000 Cycles	IP68 - Dust Tight Waterproof	Gray Actuator
Grayhill Inc. 04J-AP-T01	2 A	2 Axis	Navigation Switch	85 °C	-55 °C	PC Pin	454 gf	100000 Cycles	Castle	4-Way Directional Center Select	Digital (Mechanical Switch)	28 V	Nickel	Gold	100000 Cycles	IP68 - Dust Tight Waterproof		115 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Joysticks ASM,JOYSTICK,4WAY,SL
