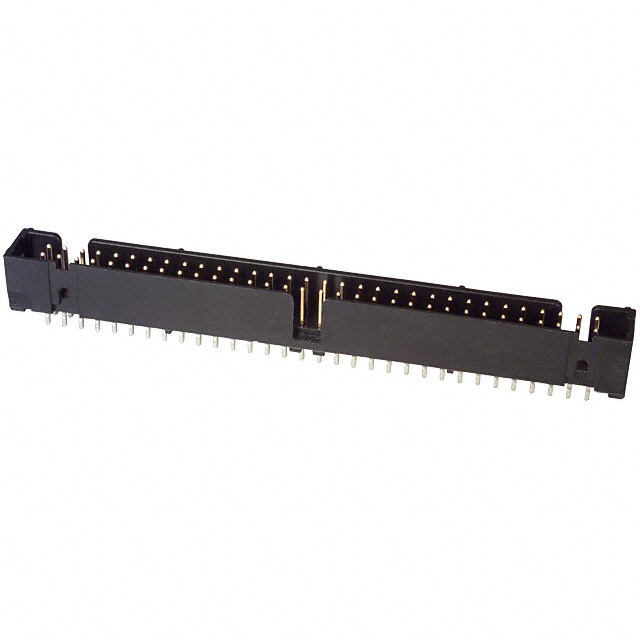

N2564-6002-RB

Active

3M (TC)

CONN HEADER VERT 64POS 2.54MM

Search across all available documentation for this part.

Active

3M (TC)

CONN HEADER VERT 64POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	N2564-6002-RB

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Post	2.84 mm
Contact Length - Post	0.112 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1.75 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height [z]	9.91 mm
Insulation Height [z]	0.39 in
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	64
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

Part	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Contact Shape	Contact Length - Post	Contact Length - Post	Termination	Style	Shrouding	Material Flammability Rating	Mounting Type	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Connector Type	Insulation Material	Features	Number of Rows	Fastening Type	Number of Positions Loaded
3M (TC) N2564-6002-RB	105 ░C	-55 °C	Copper Alloy	Black	0.1 in	2.54 mm	Male Pin	2.54 mm	0.1 in	64	Square	2.84 mm	0.112 in	Solder	Board to Board Cable	Shrouded - 4 Wall	UL94 V-0	Through Hole	9.91 mm	0.39 in	200 µin	5.08 µm	1.75 A	Tin	30 Áin	0.76 Ám	Gold	Header	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Keying Slot	2	Push-Pull	All
3M (TC) N2564-6003-RB	105 ░C	-55 °C	Copper Alloy	Black	0.1 in	2.54 mm	Male Pin	2.54 mm	0.1 in	64	Square	3.94 mm	0.155 "	Solder	Board to Board Cable	Shrouded - 4 Wall	UL94 V-0	Through Hole	9.91 mm	0.39 in	200 µin	5.08 µm	1.75 A	Tin	30 Áin	0.76 Ám	Gold	Header	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Keying Slot	2	Push-Pull	All

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 64 position 0.100" (2.54mm)
