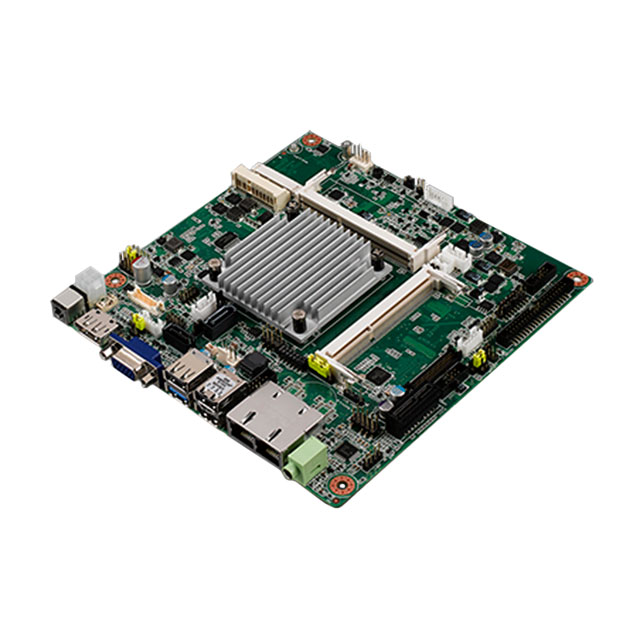

AIMB-215N-S6B1E

Active

Advantech Corp

SBC 1.83GHZ 4 CORE 8GB/0GB RAM

Deep-Dive with AI

Search across all available documentation for this part.

AIMB-215N-S6B1E

Active

Advantech Corp

SBC 1.83GHZ 4 CORE 8GB/0GB RAM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AIMB-215N-S6B1E

Cooling Type	Heat Sink
Core Processor	Intel Celeron N2930
Digital I/O Lines	8
Ethernet	10 Mbps, 1000 Mbps, 100 Mbps
Expansion Site/Bus	PCIe, mPCIe
Form Factor	mini-ITX
Number of Cores	4
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Power (Watts)	10.17 W
RAM Capacity/Installed [custom]	8 GB
RAM Capacity/Installed [custom]	0 GB
RS-232 (422, 485)	6
Size / Dimension [x]	169.92 mm
Size / Dimension [x]	6.69 "
Size / Dimension [y]	6.69 in
Size / Dimension [y]	169.92 mm
Speed	1.83 GHz
Storage Interface	SATA 2.0 (2)
USB	USB 2.0 (7), USB 3.0 (1)
Video Outputs	VGA, DP, CRT, LVDS
Watchdog Timer	True

AIMB-215 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	USB	Storage Interface	Form Factor	Ethernet	Cooling Type	Power (Watts)	Core Processor	Expansion Site/Bus	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Number of Cores	Digital I/O Lines	Speed	RAM Capacity/Installed [custom]	Video Outputs	RS-232 (422, 485)
Advantech Corp AIMB-215D-S6A1E	60 °C	0 °C	USB 2.0 (9) USB 3.0 (1)	SATA 2.0 (2)	mini-ITX	10 Mbps 100 Mbps 1000 Mbps	Heat Sink	10.17 W	Intel Celeron J1900	mPCIe PCIe	169.92 mm	6.69 "	6.69 in	169.92 mm	4	8	2 GHz	8 GB	CRT DP LVDS VGA	6
Advantech Corp AIMB-215D-S6B1N	60 °C	0 °C	USB 2.0 (7) USB 3.0 (1)	SATA 2.0 (2)	mini-ITX	10 Mbps 100 Mbps 1000 Mbps	Heat Sink	10.17 W	Intel Celeron J1900	mPCIe PCIe	169.92 mm	6.69 "	6.69 in	169.92 mm	4	8	2 GHz	8 GB	CRT DP LVDS VGA	6
Advantech Corp AIMB-215N-S6B1E	60 °C	0 °C	USB 2.0 (7) USB 3.0 (1)	SATA 2.0 (2)	mini-ITX	10 Mbps 100 Mbps 1000 Mbps	Heat Sink	10.17 W	Intel Celeron N2930	mPCIe PCIe	169.92 mm	6.69 "	6.69 in	169.92 mm	4	8	1.83 GHz	8 GB	CRT DP LVDS VGA	6
Advantech Corp AIMB-215L-S6B1E	60 °C	0 °C	USB 2.0 (3) USB 3.0 (1)	SATA 2.0 (1)	mini-ITX	10 Mbps 100 Mbps 1000 Mbps	Heat Sink	10.17 W	Intel Celeron J1900	mPCIe PCIe	169.92 mm	6.69 "	6.69 in	169.92 mm	4	8	2 GHz	8 GB	CRT DP VGA	6
Advantech Corp AIMB-215L-S6A1E	60 °C	0 °C	USB 2.0 (3) USB 3.0 (1)	SATA 2.0 (1)	mini-ITX	10 Mbps 100 Mbps 1000 Mbps	Heat Sink	10.17 W	Intel Celeron J1900	mPCIe PCIe	169.92 mm	6.69 "	6.69 in	169.92 mm	4	8	2 GHz	8 GB	CRT DP VGA	6
Advantech Corp AIMB-215L-S6A1E	60 °C	0 °C	USB 2.0 (3) USB 3.0 (1)	SATA 2.0 (1)	mini-ITX	10 Mbps 100 Mbps 1000 Mbps	Heat Sink	10.17 W	Intel Celeron J1900	mPCIe PCIe	169.92 mm	6.69 "	6.69 in	169.92 mm	4	8	2 GHz	8 GB	CRT DP VGA	6
Advantech Corp AIMB-215U-S6B1E	60 °C	0 °C	USB 2.0 (3) USB 3.0 (1)	SATA 2.0 (1)	mini-ITX	10 Mbps 100 Mbps 1000 Mbps	Heat Sink	10.17 W	Intel Celeron N2807	mPCIe PCIe	169.92 mm	6.69 "	6.69 in	169.92 mm	4	8	1.58 GHz	8 GB	CRT DP VGA	6
Advantech Corp AIMB-215DZ-S6B1E	70 °C	-20 C	USB 2.0 (7) USB 3.0 (1)	SATA 2.0 (2)	mini-ITX	10 Mbps 100 Mbps 1000 Mbps	Heat Sink	10.17 W	Intel Celeron J1900	mPCIe PCIe	169.92 mm	6.69 "	6.69 in	169.92 mm	4	8	2 GHz	8 GB	CRT DP LVDS VGA	6
Advantech Corp AIMB-215D-S6B1E	60 °C	0 °C	USB 2.0 (7) USB 3.0 (1)	SATA 2.0 (2)	mini-ITX	10 Mbps 100 Mbps 1000 Mbps	Heat Sink	10.17 W	Intel Celeron J1900	mPCIe PCIe	169.92 mm	6.69 "	6.69 in	169.92 mm	4	8	2 GHz	8 GB	CRT DP LVDS VGA	6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 356.66

Description

General part information

AIMB-215 Series

Single Board Computer 1.83GHz 4 Core 8GB/0GB RAM Intel Celeron N2930

Documents

Technical documentation and resources

No documents available
