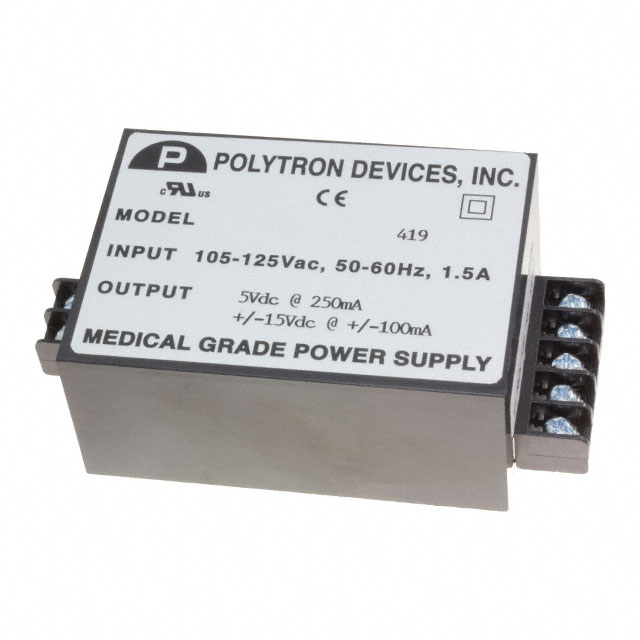

P53-1580T/MHIA

Active

Polytron

AC/DC CONVERTER 5V +/-15V

Search across all available documentation for this part.

Active

Polytron

AC/DC CONVERTER 5V +/-15V

Technical Specifications

Parameters and characteristics for this part

Part	Current - Output (Max)	Line Regulation	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Type	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Mounting Type	Voltage - Output 2	Voltage - Output 3	Applications	Voltage - Output 1	Load Regulation	Number of Outputs	Current - Output 3	Current - Output 1	Voltage - Isolation	Current - Output 2	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]
Polytron P53-1580XA/MHIA	1 A 150 mA	0.02 %	3.5 in	63.5 mm	63.5 mm	51 mm	2.01 in	88.9 mm	7-DIP Module	-25 °C	71 °C	Enclosed	105 VAC	230 VAC/DC	CE cURus	Through Hole	15 V	-15 V	Medical	5 V	0.1 %	3
Polytron P53-1580T/MHIA			104.1 mm		63.5 mm		50.8 mm			-25 °C	71 °C	Enclosed	105 VAC	125 VAC	CE cURus	Chassis Mount	15 V	-15 V	Medical	5 V		3	150 mA	1 A	4000 V	150 mA	4.1 "	2.5 in	2 "
Polytron P53-1580XE/MHIA	1 A 150 mA	0.02 %	3.5 in	63.5 mm	63.5 mm	51 mm	2.01 in	88.9 mm	7-DIP Module	-25 °C	71 °C	Enclosed	105 VAC	240 VAC	CE cURus	Through Hole	15 V	-15 V	Medical	5 V	0.1 %	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 3 Output 5V 15V -15V 105 ~ 125 VAC Input

Technical documentation and resources

No documents available
