1127060

Active

Phoenix Contact

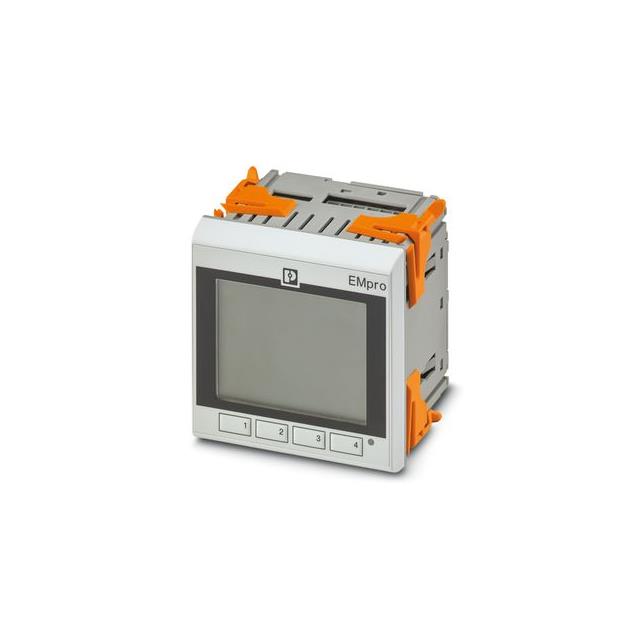

CALIBRATION EQUIPMENT EEM-MA771-24DC

Search across all available documentation for this part.

Active

Phoenix Contact

CALIBRATION EQUIPMENT EEM-MA771-24DC

Technical Specifications

Parameters and characteristics for this part

Specification	1127060

Display Type	LCD - Dual Color Characters, Backlight
Ingress Protection	IP54 - Dust Protected, Water Resistant
Measuring Range [Max]	690 VAC, 5 A
Measuring Range [Min]	0 A, 35 VAC
Measuring Type	Current (3-Phase), Wattage, Voltage
Mounting Type	DIN Rail
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Termination Style	Screw Terminal
Type	Energy Monitor
Voltage - Supply	24 VDC

Part	Voltage - Supply	Ingress Protection	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Type	Measuring Type	Measuring Range [Max]	Measuring Range [Min]	Termination Style	Mounting Type	Display Type
Phoenix Contact 1127052	24 VDC	IP54 - Dust Protected Water Resistant	55 °C	-10 °C	Energy Monitor	Current (3-Phase) Voltage Wattage	5 A 690 VAC	0 A 20 VAC	Screw Terminal
Phoenix Contact 1127055	24 VDC		55 °C	-10 °C	Energy Monitor	Current (3-Phase) Voltage Wattage	5 A 690 VAC	0 A 35 VAC	Screw Terminal	DIN Rail
Phoenix Contact 1127060	24 VDC	IP54 - Dust Protected Water Resistant	55 °C	-10 °C	Energy Monitor	Current (3-Phase) Voltage Wattage	5 A 690 VAC	0 A 35 VAC	Screw Terminal	DIN Rail	LCD - Dual Color Characters Backlight
Phoenix Contact 1127059	24 VDC	IP40	55 °C	-10 °C	Energy Monitor	Current (3-Phase) Voltage Wattage	5 A 690 VAC	0 A 35 VAC	Screw Terminal	DIN Rail	LCD - Dual Color Characters Backlight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 485.18
		10	$ 458.23
Sager	N/A	1	$ 523.69

General part information

Energy Monitor LCD - Dual Color Characters, Backlight Display DIN Rail

Technical documentation and resources
